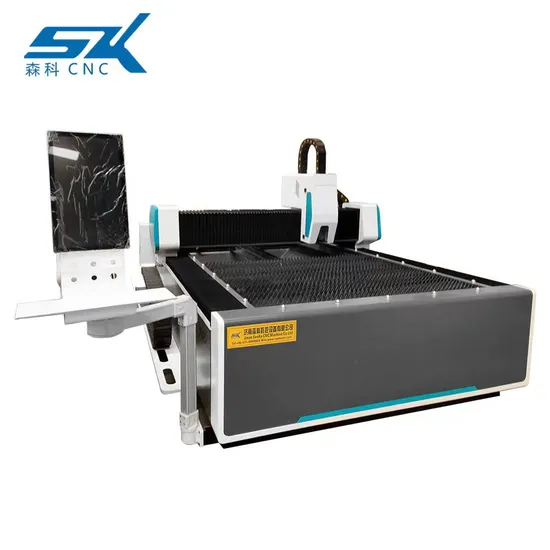

Senke 1000W 3000W CNC Fiber Laser Ss Cutting Machine

Senke 1000W 3000W CNC Fiber Laser Ss Cutting Machine

US$12,970.00
1-2 set
US$12,860.00
3+ set

Basic Info.

Model NO.
SKL-1530F
Cooling System
Water Cooling
Technical Class
Fiber Laser Source
Applicable Material
Metal
Structure Type
3 Axis or 4 Axis
Laser Classification
Fiber
Laser Technology
Laser Control Fault Cutting
Cutting Depth
1-30mm
Sources Brand
Raycus
Pipes Cut
Available
Package
Wooden Box
Transport
by Sea
Machine Size
1325, 1530, 2040, 2060 etc
Table
Knives
Auto Oil Feed
Yes
Structurer
Heavy
Transmission
Gear Rack
Rails
Hiwin Square
Cutting Head
Au3tech/Raytool
Head
Manual/Auto
Remote Controller
Available
Computer
Included
Transport Package
Standard Plywood Export Wooden Box
Specification
1500*3000mm
Trademark
SENKE
Origin
China
HS Code
8456110090
Production Capacity
200sets/Month

Product Description

1000W 1500W 2000W 3000W Till 12000W Raycus Fiber Laser Cutting Machine for cutting Carbon Steel Stainless Steel Metal Sheet Plate
Specification
Model SKL-1530F SKL-2030F SKL-2040F
Working area 1500*3000mm 2000*3000mm 2000*4000mm
Table Surface Thicken steel made lathe Thicken steel made lathe Thicken steel made lathe
X Y Moving way Rack and Pinion Rack and Pinion Rack and Pinion
Z Movement Ballscrew Ballscrew Ballscrew
Max Moving Speed 70000mm/min 70000mm/min 70000mm/min
Max cutting Speed 50000mm/min 50000mm/min 50000mm/min
Power MAX 1000W(1500w/2000W optional) MAX 1000W(1500w/2000W optional) MAX 1000W(1500w/2000W optional)
Operating system (au3tech) SC2000 (au3tech) SC2000 (au3tech) SC2000
Motor&Drive type Stepper motors(Servo optional) Stepper motors (Servo optional) Stepper motors (Servo optional)
Voltage 220v ,single phase/380v, three phase 220v ,single phase/380v, three phase 220v ,single phase/380v, three phase
4.3*2.48*1.8m 2800kg
Note: The details can be changed according to your need.

Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet,
Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate,
Metal Sheet, Metal Plate, Tubes and Pipes, etc.
FAQ
Q: Which machine size you have ?
A: As manufacturer, the machine size can customized according to the materials sizes,
the populare size has 1300*250mm, 1500*3000mm, 2000*4000mm, 2000*6000mm ,tube cut etc. Q: How depth the machine can cut ?
A: The machine with different power, cut different depth, the power has 1000W,
1500W, 2000W, 3000W, 4000W, 6000W, 8000W, 12000W cutting from 3mm-40mm.
Q: Including the machine i see, what other machines you have?
A: As manufacturer we have above machines supplied
---cnc router machine
---plasma cutting machine
---fiber laser cutting machine
---laser marking machine
---glass cutting and grinding machine
Q: What certification you supplied? A: We have CE, FDA, CO, FORM A, FORM E, FTA etc
Q: How long you need to make the machine? A: The machine was been made according to their sequence, commongy takes about 13-15 working days.
Q:This is the first time I use this kind of machine, is it easy operate?
A: Come with the machine, the teaching manual and video been supplied, at the same time, the online face to face guid also available
Q: Can you ship the machine to my country/address?
A: Yes, FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF etc all are ok, just tell your nearest sea port /final address.
Q; Which payment method you can accept?
A: Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow etc etc or as talking.
