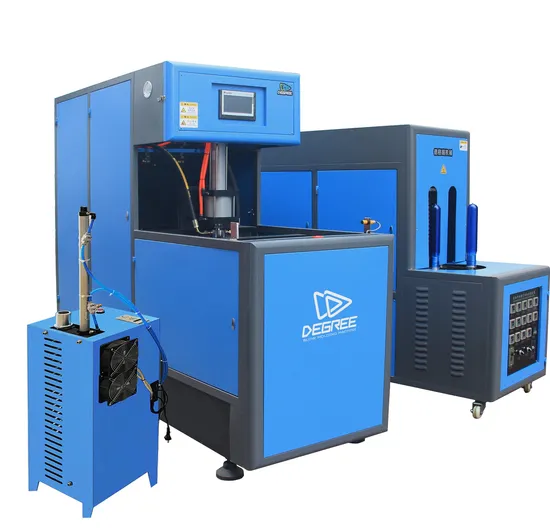

Semi-Automatic 5 Gallon Pet Water Bottle Blow Molding Machine

Semi-Automatic 5 Gallon Pet Water Bottle Blow Molding Machine

US$6,500.00
1-2 Sets
US$6,300.00
3-4 Sets
US$6,100.00
5-9 Sets
US$5,800.00
10+ Sets

Basic Info.

Model NO.
DEG-20L
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
1-2years
Machine Type
Blow Molding Machine
Mould Cavity
1
Bottle Neck
50-120mm
Bottle Size
7-25L
Output
80-100bph
High Air Compressor
1.2m3/3.0MPa
Low Air Compressor
1.6m3/1.0MPa
Mould Chiller
3HP
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Wooden Case
Specification
20kw
Trademark
Degree
Origin
Taizhou, Zhejiang
HS Code
8477309000
Production Capacity
100 Sets/Year

Product Description

Product Name:
Semi-Automatic 5 Gallon Pet Water Bottle Blow Molding Machine
Product Description

What is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles ect.
DEG-20L Semi automatic bottle blow molding machine can produce PET containers including the bottles for kinds
of wine, drink,soybean, vinegar, and pesticide (less than 20Liters) according to the different bottle shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine ,It has high pressure protection with the feature of precisely removing mould ,The machine has no noise ,It is easy to maintain ,It's the equipment for producing PET bottles.
Detailed Photos

Product Parameters
Model
DEG-20L (One Blower, One Heater)
Clamping Force
220KN
Clamping Stroke
450 MM
Max. Stretching Stroke
660MM
Number of Cavities
1 Cavity
Theoretical Output
80-100 BPH(7-25L, 1cav)
Max. Mold Thickness
400MM
Voltage Standard
380v/3PH/50Hz
Total Power (Full Loaded)
20-25KW
Max. Container Volume
20L
Neck Diameter Range
50-120mm
Max. Container Diameter
400mm
Max. Container Height
600mm
Low Air compressor
10Bar
High Air compressor
30-40Bar
Blow molding machine
2100*700*1900mm
Preform Heater
2200*700*1600mm
Net Weight
2000kgs

Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
