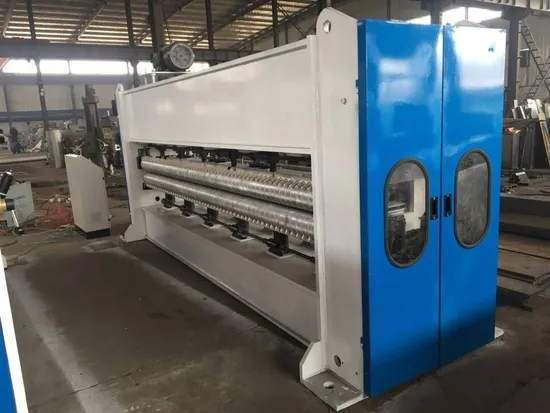

Non-Woven Punching Machine for Blanket/Cotton Textile Waste Recycle with Good Quality/Felt Machine Line Made in China
| US$12,300.00-17,900.00 | 1 Set (MOQ) |
Basic Info.
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
Weight
9050kgs
Working Width
2000-6200mm
Color
White and Blue
The Final Product
50-1000GSM
Needle Board
Air Needle Board
Needle Density
5000 to 6500 Needles
Needle Trip
40mm,60mm
Machine Type
Non Woven Machine
The Related Machines
Support
Field Installation Machine
Support
Machine Speed
Middle Speed
Needle Hole Diameter
1.83 or 2.02
Factory
Gaomi Rongda Machinery
Thickness of Steel Plate
Thickened
Inverter
Delta
Transport Package
Export Standard Packaging
Specification
L4970W1600H2425(mm)
Trademark
RD
Origin
China
HS Code
8449001090
Production Capacity
360kg/Hour
Product Description
Needle punching machine for nonwoven felt / blanket production line1--Suitable fiber: chemical fiber, such as PET, PP specification: 1.5 ~ 6 d length of 31 ~ 51 mm polyester staple fiber and ES low melting point fiber, glass fiber, aramid fiber, etc.
2-- Product specifications: 50 ~ 1000 g / m2 (1 layer)
3-- Production capacity: carding machine output by 220 kg/h (6 d common assessment of chemical fiber as raw materials)
Usage and Features
Needle punching machine can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
Product Feature:
1.Adopt CNC gantry milling machine with good stability, high precision and high finish
2.Automatic oil injection system,good for machine lubrication and maintenance.
3. Cagnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube; multi random computer needling methods for needle board.
4.Chrome plated delivery rollers with carved or patterned surface.
| NO | ITEM | DESCRIPTION |
| 1 | Model | GMZ-380M |
| 2 | Dimension of M/C | L4970W1600H2425(mm) |
| 3 | Weight | 9050kgs/9350kgs |
| 4 | Total power | 22kw |
| 5 | Main motor | 15KW; 3 phase AC power 50Hz/ |
| 6 | Needle density | Depend on the customer's requirements |
| 7 | The average output | 360kg/hour(Working at width 2500mm&300g/m2 under running normal) |
| 8 | Protection | Main motor overload protection |
| 9 | The control mode | Constant power & Inverter control |
| 10 | Working width | 3800mm |
| 11 | Needle plate | High-strength aluminum alloy |
| 12 | Bearing | KOYO/Or according to the customer's requirements |
| 13 | Type of holes | Diameter1.83mm/An inverted cone |
| 18 | Trip of needle | 60 mm /40mm/40mm |
| 19 | Transfer roller | Diameter:168mm/ Chromium plating process/high quality 50# steel |
| 20 | Needle plate | High strength alloys and shock shape /totally 18 mm thickness |
| 21 | The main shaft & other work shaft | Diameter: 80mm/ Dynamic balance and strength strengthening heat treatment/high quality steel |
| 22 | Print Color | Following customer's requirements |
| 23 | The control cabinet and panel | Digital display instrument, and equipped with knob regulator, professional electric schematic diagram |
| 24 | Note | Direction:up first then down/The round-trip distance of the needle can be adaptive adjustment according to the thickness of the raw materials. |
