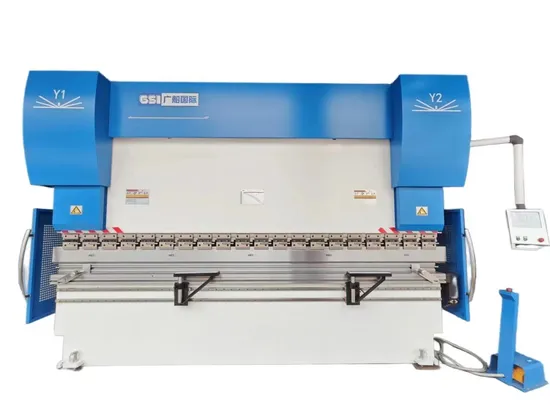

Double Servo Pump Hydrid CNC Press Brake Bending Machine for Sheet Metal

Product Description

Introducing the WPE Series Double Servo Pump CNC Bending Machine Product Name: WE80/2500E CNC Press Brake with Cybtouch 12PS Control System
Company Name: Guangdong GSI Elevator Electromechanical Equipment Ltd
Double Servo Motors

Adopting dual servo motors and bidirectional gear pumps, the speed of the servo motor is controlled through a CNC system, and the hydraulic oil flow output from the oil pump is controlled to achieve synchronization and precise positioning of the two oil cylinders of the bending machine, resulting in faster downward speed and higher workpiece efficiency.

Product Structure

The frame is analyzed through finite element software to ensure the strength, rigidity, and safety of the machine.It has a simple and beautiful appearance, with exquisite workmanship. The mechanical processing and assembly of components are all meticulously crafted.The welding of the frame is the core process of bending machine manufacturing, and the welding seams of the frame are polished without welding slag and flow scars; Then undergo shot blasting treatment and spray anti rust primer.

Mechanical Deflection Compensation Device

This machine is equipped with compensating wedges and controlled by a CNC system to produce pre-crowning on the lower worktable, compensating for the deflection and deformation of the upper slide. This ensures that the angle variation of the workpiece is within the allowable tolerance range, guaranteeing high-quality bending accuracy.

Fast Clamp

The The standard equiped fast clamp will help you replace the upper die in very short time. Convenient and time-saving.

Press Brake Toolings

Press Brake toolings are made of 42CrMo mold steel, with an overall hardness of 47 degrees, excellent quality, and durability.The upper mold is installed on the slider and is fixed by a precision fast clamping device;Using single V and double V molds can make mold replacement convenient and fast, reduce labor intensity, and improve production efficiency.

Back Gauge Fingers

High adjustment accuracy, fast and convenient locking installation, and improved work efficiency.

CNC System (Standard)

Delem DA-53T -"Hot-key" touch navigation -10.1" high resolution colour TFT -Up to 4 axes (Y1,Y2 + 2 aux. axes) -Crowning control -Tool / material / product library. -Servo and frequency inverter control -Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. -Tandem Link (option) -USB memory stick interfacing -Profile-T offline software

CNC System (Optional)
160 Ton Double Servo Pump CNC Press Brake for Steel Sheet Bending Experience high precision bending with our 80 Ton Double Servo Pump CNC Press Brake. Perfect for steel sheet bending, this 2500mm machine offers industrial-grade performance. Get the precision and reliability you need with our hydraulic press brake.

No.	Model	Nominal pressure (kN)	Table length (mm)	Distance Between Heusine (mm)	Throat depth (mm)	Slide stroke (mm)	Opening helght (mm)	Main motor power(kw)	Back Gauge operating range (mm	Speed			Overall dimension			Weight (kg)
										Approach (mm/s)	Working (mm/s)	Return (mm/s)	L(mm)	W(mm)	H(mm)
1	WP63/2500E	630	2500	2000	320	160	450	2×3.8	500	260	20	260	3100	1500	2600	5500
2	WP80/2500E	800	2500	2000	400	200	470	2×3.8	500	260	19	260	3100	1650	2650	6000
3	WP100/2500E	1000	2500	2000	400	250	525	2×5.7	500	240	16	240	3100	1650	2650	7200
4	WP100/3200E	100	3200	2700	400	250	525	2×5.7	500	240	16	240	3800	1650	2750	8000
5	WP100/4000E	100	4000	3500	400	250	525	2×5.7	500	240	16	240	4600	1650	2800	9000
6	WP125/3200E	1250	3200	2700	400	250	525	2×5.7	500	230	16	230	3800	1700	2750	9000
7	WP125/4000E	1250	4000	3500	400	250	525	2×5.7	500	230	16	230	4600	1700	2800	10000
8	WP160/3200E	1600	3200	2700	400	250	525	2×5.7	500	220	16	220	3800	180	2800	9500
9	WP160/4000E	1600	4000	3500	400	250	525	2×5.7	500	220	16	220	4600	180	2850	11500
10	WP160/5000E	1600	5000	4100	400	250	525	2×5.7	500	220	16	220	5600	1800	3000	13000
11	WP160/6000E	1600	6000	5100	400	250	525	2×5.7	500	220	16	220	6600	180	3200	15500
12	WP200/3200E	2000	3200	2700	400	250	550	2×11	500	180	14	180	380	1800	2850	12000
13	WP200/4000E	2000	4000	3300	400	250	550	2×11	500	180	14	180	4600	1800	2900	14000
14	WP200/5000E	2000	5000	4100	400	250	550	2×11	500	180	14	180	5600	1800	3100	15500
15	WP200/6000E	2000	6000	5100	400	250	550	2×11	500	180	14	180	6600	1800	3300	18000

View more products here. Introducing the 80 Ton Double Servo Pump CNC Press Brake for Steel Sheet Bending by Guangdong GSI Elevator Electromechanical Equipment Ltd. This high precision bending machine is perfect for industrial use, offering hydraulic power and a 2500mm bending capacity.https://gsi--tfm.en.made-in-china.com/product-list-1.html Company Profile Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After nearly 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.Workshop View Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
FAQ
1. Q: Are you a factory or a trading company?
A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.
2. Q: How to get a accurate quotation from you ?
A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.
3. Q: What's the payment terms ?
A : T/T ,30% initial payment when order confirmed,70% balance before shipment.
4. Q: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5. Q: Can you provide customized machine and tool?
A: Yes,we can design and manufacture according to your specific requirements.
6. Q: How do you guarantee your quality?
A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.
7. Q: Where is your factory located? How can I visit there?
A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.
