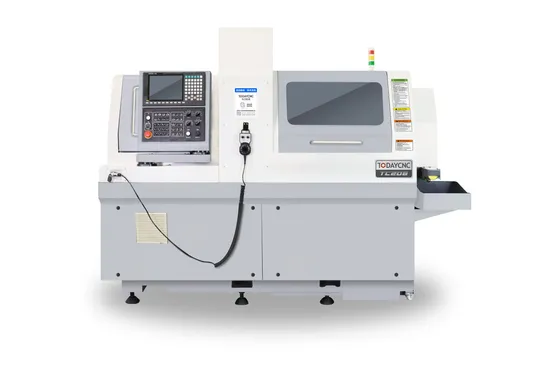

CNC Machine Tool Turning Milling Center Automatic Lathe Tc206 with Dual Spindle

Product Description

Product Description
Model: TC206
System available: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN etc.
Double spindle
6-axis function
Max machining diameter: 20mm
Motorized spindle
Features
*Each axis equipped with imported high-precision linear guide,ball screws and precise bearings. * Using synchronous guide bush structure,realize high-speed and high-precision machining. * With guide bush or without guide bush switching flexiblely to meet different needs of processing. * Key components with gas sealing structure, oil and slag prevention, improving service life and stability. * Select high torque motor, high rigidity and high strength slipway for each axis and tool holder to meet the requirements of large cutting volume and high efficiency. * High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.
Standard configuration
* SYNTEC numerical control system* Main pneumatic chucking device* Movable guide bush* Synchronal rotary guide bush device* Live tool* Workpiece belt conveyor
Optional configuration
* Non guide bush* MITSUBISHI numerical control system* FANUC numerical control system* High pressure pump* Oil mist collector* Y2 tool holder* Chip conveyor* Long workpiece collectorMain accessary brand

Name			Origin and brand
Spindle and guide bush bearing			Japan NSK, Germany-FAG
Guide rail			Japan THK,Sweden-SKF,Taiwan PMI ,Taiwan HIWIN
Guide screw			Taiwan PMI ,Taiwan HIWIN
Elextrical components			France-Schneider,Japan IDEC
Relay			Japan IDEC
Pneumatic system			Taiwan AirTAC, Japan SMC

Layout
Product Parameters

Model			TC206-1	TC206-2	TC206-3	TC206-4
			6-axis,dual spindle	6-axis,dual spindle	6-axis,dual spindle	6-axis,dual spindle
NC system			SYNTEC 220TB	SYNTEC 220TB	SYNTEC 220TB	SYNTEC 220TB
Lathe rated power		kw	15	15	15	15
Machining range
Maximum machining diameter		mm	φ20	φ20	φ20	φ20
Maximum machining length (one-time clamping)With guide bush		mm	230	230	230	230
Maximum machining length (one-timeclamping)Non guide bush		mm	2D	2D	2D	2D
Main spindle power		kw	2.2/3.7	2.2/3.7	2.2/3.7	2.2/3.7
Sub spindle power		kw	2.2/3.7	2.2/3.7	2.2/3.7	2.2/3.7
Main spindle max through hole dia		mm	φ27	φ27	φ27	φ27
Main/sub spindle rev speed		rpm	10000/10000	10000/10000	10000/10000	10000/10000
Sub spindle max clamping dia		mm	φ20	φ20	φ20	φ20
Sub spindle max through hole dia		mm	φ27	φ27	φ27	φ27
Max tool installed qty			22	23	25	26
OD Turning tool
Qty x Model		mm	6*Φ12	6*Φ12	6*Φ12	6*Φ12
Cross live tool
Cross live tool		mm	4*ER16	4*ER16	4*ER16	4*ER16
Drilling dia		mm	φ10	φ10	φ10	φ10
Tapping/Threading die dia		mm	M6	M6	M6	M6
Live tool rev speed		rpm	5500	5500	5500	5500
Live tool power		kw	1	1	1	1
End -face tool (Mainspindle)
Fixed	Qty x Model	mm	4*ER16	4*ER16	4*ER16	4*ER16
	Drilling dia	mm	φ10	φ10	φ10	φ10
	Tapping/Threading die dia	mm	M8	M8	M8	M8
Live	Qty x Model	mm	--	--	3*ER16	3*ER16
	Drilling dia	mm	--	--	φ10	φ10
	Tapping/Threading die dia		--	--	M6	M6
	Live tool rev speed	mm	--	--	5500	5500
	Live tool power	kw	--	--	0.75	0.75
Back end-face tool(Sub spindle)
Fixed	Qty x Model	mm	4*ER16	4*ER16	4*ER16	4*ER16
	Drilling dia	mm	φ10	φ10	φ10	φ10
	Tapping/Threading die dia	mm	M8	M8	M8	M8
End face live tool		mm	4*ER16	3*ER16	4*ER16	3*ER16
Side- Live tool		mm	--	2*ER16	--	2*ER16
Drilling dia		mm	φ10	φ10	φ10	φ10
Tapping/Threading die dia		mm	M6	M6	M6	M6
Live tool rev speed		mm	5500	5500	5500	5500
Live tool power		kw	0.75	0.75	0.75	0.75
Rapid feed speed		m/min	18(X1/Y2) 24(X2/Y1/Z1/Z2)	18(X1/Y2) 24(X2/Y1/Z1/Z2)	18(X1/Y2) 24(X2/Y1/Z1/Z2)	18(X1/Y2) 24(X2/Y1/Z1/Z2)
Feed motor power		kw	1	1	1	1
The power capacity		kva	15	15	15	15
Air pressure device		mpa	0.6	0.6	0.6	0.6
Weight		kg	3500	3500	3500	3500
Dimensions L*W*H		mm	2450*1350*1850	2450*1350*1850	2450*1350*1850	2450*1350*1850
