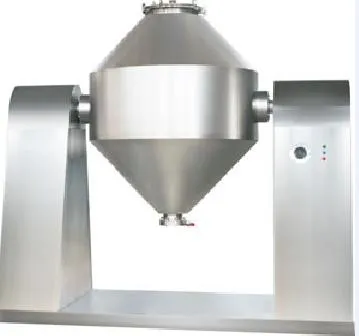

Heat Transfer Heated Oil Vacuum Rotary Double Cone Dryer

Product Description

GSZ double cone rotary vacuum dryer produced by our company can be divided into GSZ glass lined type and GSZ stainless steel type according to the material of inner tank. According to the different properties of materials required by customers, customers can choose according to their needs. In the production and sales of more than ten years, our company has made a variety of breakthroughs in the glass enamel double cone rotary dryer through continuous innovation and improvement according to the actual needs of customers, overcoming a variety of difficulties in enamel technology. In the drying performance and ensure the purity of materials in the international advanced level.
Product overview
SZG double cone vacuum dryer is a new generation drying device developed by our factory in combination with domestic similar product technology. Double cone vacuum adopts belt chain two elastic connection modes, so the equipment runs smoothly. The specially designed process fully embodies the good concentricity of the two shafts. The heat medium and vacuum system adopt reliable mechanical seal or rotary joint of American technology. Based on these, we developed SZG-a, which can not only Stepless-speed regulation, but also constant temperature control.
As a professional drying equipment manufacturer, our products are available from high temperature heat transfer oil as heat medium, medium temperature steam and low temperature hot water. When drying sticky materials, our factory will specially design a "plate " mechanism or set bearing balls in the tank . Material to be dried It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature(for example, biochemistry)products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.

Characteristics When oil is used to heat,use automatic constant temperature control .It can be used for drying biology products and mine Its temperature of operation can be adjusted form 20-160oC.
Compared to ordinal dryer, its heat efficiency will be 2 times higher.
The heat is indirect So the raw material can not be polluted.
It is in conformity with the requirement of GMR It is easy in washing and maintenance.

Name/Specification	100	350	500	750	1000
Tank capacity	100	350	500	750	1000
Loading capacity (L)	≤50	≤175	≤250	≤375	≤500
Heating area (m2)	1.16	2	2.63	3.5	4.61
Speed (rpm)	4 - 6
Motor power (kw)	0.75	1.1	1.5	2	3
Floor area Length × width (mm)	2160×800	2260×800	2350×800	2560×1000	2860×1300
Turning height (mm)	1750	2100	2250	2490	2800
Tank design pressure (Mpa)	-0.1-0.15
Jacket design pressure (Mpa)	≤0.3
Operating temperature (oC)	in-tank≤85 jacket≤140
When using condenser, vacuum pump,	2X-15A	2X-15A	2X-30A	2X-30A	2X-70A
Model, Power	2KW	2KW	3KW	3KW	505KW
When not using condenser, vacuum pump,	SK-0.4	SK-0.8	SK-0.8	SK-2.7B	SK-2.7B
Model, Power	1.5KW	2.2KW	2.2KW	4KW	4KW
Weight (kg)	800	1100	1200	1500	2800

Name/Specification	1500	2000	3500	4500	5000
Tank capacity	1500	2000	3500	4500	5000
Loading capacity (L)	≤750	≤1000	≤1750	≤2250	≤2500
Heating area (m2)	5.58	7.5	11.2	13.1	14.1
Speed (rpm)	4 - 6
Motor power (kw)	3	4	5.5	7.5	11
Floor area Length × width (mm)	3060×1300	3260×1400	3760×1800	3960×2000	4400×2500
Turning height (mm)	2940	2990	3490	4100	4200
Tank design pressure (Mpa)	-0.1-0.15
Jacket design pressure (Mpa)	≤0.3
Operating temperature (oC)	-0.1-0.15
When using condenser, vacuum pump,	JZJX300-8	JZJX300-4	JZJX600-8	JZJX600-4	JZJX300-4
Model, Power	7KW	9.5KW	11KW	20.5KW	22KW
When not using condenser, vacuum pump,	SK-3	SK-6	SK-6	SK-9	SK-10
Model, Power	5.5KW	11KW	11KW	15KW	18.5KW
Weight (kg)	3300	3600	6400	7500	8600
