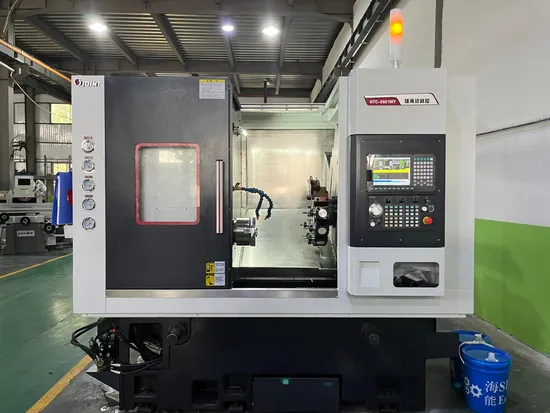

Power Head Tool Turret CNC Lathe Machine with Turning Milling and Boring Function and Y Axis

Product Description

Product Introduction: Turning and Milling CNC Lathe Machine (with Y axis ) configurates with SYNTEC and FANUC control system and its matching servo drive and motor, realize the motion axis told operation, improve the efficiency of parts processing, which can realize small dishes, axial parts of plane milling, drilling tapping, milling slot milling process, such as turning, milling and boring composite function, can achieve a clamping, Complete all machining procedures. It can be widely used in 3C products, automatic aircraft parts, electronics, machinery, automobile, aircraft, aerospace, ships, national defense and other fields of product processing.
Product characteristics:

1. Turning and milling CNC lathe machine is 45° inclined, with integral strong slant lathe bed structure (bed and base is integral), which is with good shockproof performance, high overall rigidity, and saving space characteristics.

2. X and Z axes adopt Taiwan precision ball screw and linear guideway, and rapid moving speed can reach 24m/min.
3. High precision sleeve type spindle, high accuracy, good performance, stable quality, suitable for high speed processing, especially for parts which requires high surface fitness.
4. 8+12 positions power tool turret, equiped with power head, chaning tool fastly, can finish processing in one time, especially those parts who is complicated, complexed and high requiring, saving manual tool changing time and clamping time and improving efficiency.
5. Can be optional with Y axis power head assembly, achieving end face multi-faces drilling and side milling, drilling functions.
Processing Industry:

Aviation parts Handware parts Multi-angle parts
Product Specifications:

Item	Unit	HTC-5661MY
Max swing over bed	mm	560
Max turning diameter on carriage	(mm)	170(excircle)
Max processing length	(mm)	300
Spindle motor rate	(KW)	11
Spindle head form		A2-6
Hydraulic chuck diameter	mm	8''
Spindle max rotation speed	rpm	4200
Spindle hole diameter	mm	Ø66
Work piece bar diameter	mm	Ø52
X axis max travel	mm	230
Y axis max travel	mm	85
Z axis max travel	mm	610
X/Z axis connection way		Direct connection
X/Y/Z axis ball screw specification		3210/3208/4010
X/Y/Z axis linear guideway specification		45/30/45
X/Z axis max rapid movement speed	m/min	20/16
X/Z axis rapeat position accuracy	mm	0.015/0.015
Quill diameter	mm	80
Quill travel	mm	80
Tailstock max travel	mm	450
Tailstock sleeve taper hole		MT5
Tool number		12T(With Y axis power tool turret)
Tool turret center height	mm	100
Dimension (L*W*H)	mm	2660*1760*1900
Weight	Kg	3350

Product details:
