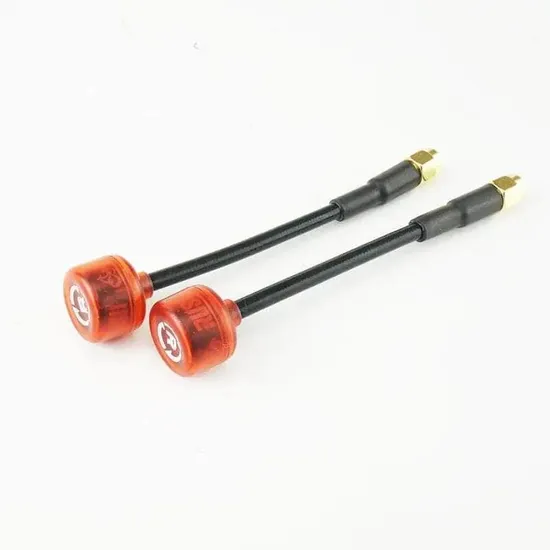

Racing Drone SMA MMCX Ufl Rush Cherry Antenna Fpv 5.8g 160mm

Product Description

Racing Drone SMA MMCX UFL Rush Cherry Antenna FPV 5.8G 160mm
Product Description
Features * Cherry antennas from RushFPV are optimized for racing FPV drones
* Maximum signal coverage. The 5.6-6 GHz bandwidth covers the entire frequency band, and all channels have almost the same transmission power.
* Ideal axial ratio of circular polarization.
* Effectively suppresses screen flicker caused by multi-beam interference.
* Small and strong.
* Optimized design obtained by massive impact tests.
* The flexible pipe can withstand angular bends and shocks to avoid damaging the cable.
* Between 5650 and 5950 MHz VSWR is below 1.2, which means transmission efficiency up to 98%. It can also help reduce VTX heating.
* Quick installation. Antenna clamps have the same size as standard SMA flange connectors. The length of the antenna tube can be shortened according to your needs.
* Quality guarantee. Cherry antennas are tuned to the performance of a professional microwave laboratory Rush FPV, and each antenna is checked by a network analyzer before sending from the factory.
Specification * Gain: 1.2dBi
* S11 SWR: 1.4 max - 1.1 min
* Band Width: 5600-6000-MHz
* Axial Ratio: Around 1.0
* Polarization: LHCP or RHCP
* Connector: SMA
* Length (end of SMA to base of Antenna): 14CM Technical Details

Product Dimensions	2.5 x 2.5 x 9 cm; 25 Grams
Manufacturer recommended age	10 months and up
Item model number	1093
Batteries Required?	No
Batteries Included?	No
Number of channels	2

About this item * Updated Version:
RUSH CHERRY Lollipop V3 5.8GHz center frequency and 5600-8000MHz bandwidth range, RUSH CHERRY FPV Antenn have exquisite workmanship, best in class range and signal quality.
* IRoot reinfircement design:
RUSH CHERRY antenna can be bent at any angle maintain,360°protection low feeder loss, easy to install.
* Imported PC+ABS Material:
RUSH CHERRY RHCP antenna for 5.8GHz FPV racing,can withstand high strength impact,support you better range and performance in any orientation.
* Longer Transmission Range:
Exquisive workmanship, manufactured and tested to highest standards.Best in class range and signal quality.
* Mini size & light weight:
73mm height/ 16mm Diameter,7.5g / pc. FAQ Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2.Could you offer OEM&ODM service?
A2:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q3.Do you guarantee the quality of products?
A3:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q4.How long is the production cycle?
A4:Sample order is 4-5days. Bulk orders take 9-10 days.
Q5.What shipping ways do you have?
A5:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
