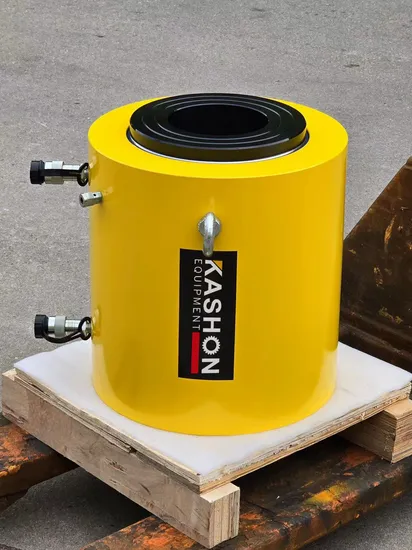

Rrh-3008 CE Certified 700bar 10000psi 300 Ton Double Acting Hollow Hydraulic Cylinder Jack with Center Hole
| US$2,750.00-2,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RRH-3008
Type
Hydraulic Jack
Structure
Hydraulic Jack
Capacity (Load)
300t
Power Source
Hydraulic
Max Height
>400mm
Certification
CE, ISO 9001:2008
Condition
New
Max. Working Pressure
700bar/70MPa/10000psi
Capacity
300 Ton
OEM
Available
Return Type
Hydraulic Return
Packing
Plywood Case
Shipping
by Sea, Air or Express
Stroke
200mm
Delivery Time
15-20 Days
Transport Package
Standard Case
Specification
standard
Trademark
KASHON or OEM
Origin
China
HS Code
8425421000
Production Capacity
10000pieces/Year
Packaging & Delivery
Package Size
55.00cm * 55.00cm * 70.00cm
Package Gross Weight
410.000kg
Product Description
CE certified 700bar 10000psi 300 Ton Double Acting Hollow Hydraulic Cylinder Jack with Center Hole Product DescriptionFeatures:
These double acting cylinders enable fast and controlled retraction;
The hollow rod design enables pulling and tensioning;
Threaded collars enable convenient placement; Coated with corrosive resistant baked enamel;All cylinders have a nickel-plated floating centre tube to increase their working life;Cylinder piston rod wiper reduces contamination, extending cylinder life;
Over-pressurisation is prevented due to built in safety valves.
Product Show
Product Parameters
| Model | Cap. (ton) | Stroke B(mm) | Oil Capacity (cm3) | Collaps. Height A (mm) | OD D(mm) | Plunger Diameter F (mm) | Center Hole Diameter Y (mm) | Weight (KG) | |
| Push | Pull | ||||||||
| KSRRH-307 | 30 | 178 | 829 | 541 | 330 | 114 | 63.5 | 33.3 | 21 |
| KSRRH-3010 | 258 | 1202 | 784 | 431 | 27 | ||||
| KSRRH-603 | 60 | 89 | 733 | 482 | 247 | 159 | 91.9 | 53.8 | 28 |
| KSRRH-606 | 166 | 1366 | 900 | 323 | 35 | ||||
| KSRRH-6010 | 257 | 2115 | 1393 | 438 | 45 | ||||
| KSRRH-1001 | 100 | 38 | 505 | 333 | 165 | 212 | 127 | 79.2 | 33 |
| KSRRH-1003 | 76 | 1011 | 666 | 254 | 61 | ||||
| KSRRH-1006 | 153 | 2035 | 1337 | 342 | 79 | ||||
| KSRRH-10010 | 257 | 3420 | 2246 | 460 | 106 | ||||
| KSRRH-1508 | 150 | 203 | 4144 | 2083 | 349 | 247 | 152.4 | 79.2 | 111 |
Related Products
| HYDRAULIC HAND PUMP | |
| Model | KSP-84 |
| Pump Type | Double acting and two speed |
| Oil Capacity | 2200ml |
| Max. Working Pressure | 700bar |
| Weight | 12KGS |
| AIR HYDRAULIC FOOT PUMP | |
| Model | KSP-450D |
| Pump Type | Double acting and two speed |
| Oil Capacity | 4500ml |
| Max. Working Pressure | 700bar |
| Weight | 13KGS |
| Electric Hydraulic Pump | |
| Model | KHE-4DM or larger |
| Power Supply | 220V, 50/60Hz, 1PH or customized |
| Motor Power | 1.1kw or larger |
| Oil Capacity | 10L or larger |
| Flow | 7L/min(1st stage), 0.8L/min(2nd stage) or larger |
Application
Company Introduction
FAQ
Q1: What's the MOQ?
A1: MOQ is 1 piece.
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express (DHL, FEDEX, UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
