Single Facer Line with 1800mm Electric Mill Roll Stand

Product Description

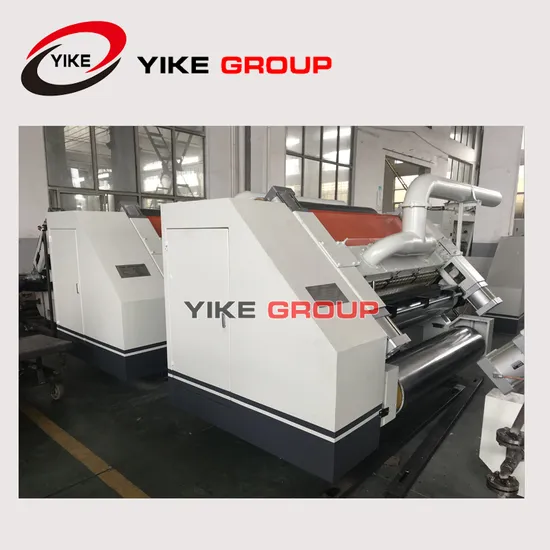

Single Facer Line With 1800mm Electric Mill Roll Stand
ZJ-F shaftless mill roll stand
Structural features:
1.each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.
2.manual dics brake,add screw following
3.electric elements centralized control the electric elements,expand chuck.
technical parameters: 1,Backstands action mode:mechanical electric operation
2,the range of paper jams:maximum:1800mm minimum:600mm
3,the diameter of paper jams:maximum:¢1400mm minimum:¢400mm
4,Unilateral maximum load:maximum2000Kg
Structural features: 1.Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer. 2,base and wallboard cast iron wall,Wallboard thickness130mm.universal Joints.
3,corrugated roller material adopt 48CrMo Alloy steel
4,pressure roller ¢ 284mm,surface grinding and chrome-plated;cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices).
5,pneumatic control glue to glue back, glue roller diameter ¢215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.
6,Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.
7,preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose.
regular technical parameters: 1,effective width:1800mm
2,operation direction:left or right(determined in accordance with customer plant)
3,design speed:100m/min working speed:60m/min
4,temperature range:200-260ºC
5,corrugated flute:(UV type or UVV type)
Structural features: 1,can save 200 sets of orders, replace the cutting specifications quickly and accurately, non-stop for a single, and can achieve computer networking, easy production management.
2,knife shaft drive gear with eccentric shaft installation, to achieve no backlash drive, high transmission accuracy.
3,cross-cutting knife with inserts steel blade. Fixed blade blade flat structure, more stable, more suitable for cutting high weight and high toughness of cardboard, the shear force is small, long blade life.
4,pull paper roller outsourcing non-slip material, more wear-resistant, accurate size.
5,host base and wall panels with high-grade gray cast iron, high strength, strong anti-vibration.
6,servo controller control motor drive, 5.7 inch color touch screen display, the project at a glance.
cutting length: 300mm-9000mm, cutting accuracy: ± 1.5mm (steady speed).
General technical parameters: 1.Working width:1800mm
2.Mechanical speed:60m/min
3.Minimum cut length:300mm
4.Maximum cutting length:9000mm
5.Cutting accuracy: uniform speed ±1.5mm
