China Universal Cylindrical Grinder Sumore 500X250mm Table Crankshaft Grinding Machine Grinders
| US$1,800.00-2,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SP2504
Type
Surface Grinding Machine
Processing Object
Surface
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Table Size
500*250
Table Loading
250kg
T -Slot Number*Width
1*14
Max Distance
335
Spindle Motor
1.5kw
Coolant Pump Motor
40W
N.W
650kfg
Package Dimension
1280X1400X1800
Key Word
Surface Grinder Machine
Process Raw Material
Copper, Aluminium,Metal,Steel,Wood
Certificate
CE
Transport Package
Plywood Box
Specification
500X250mm table
Trademark
SUMORE
Origin
China
HS Code
8458912090
Production Capacity
10
Product Description

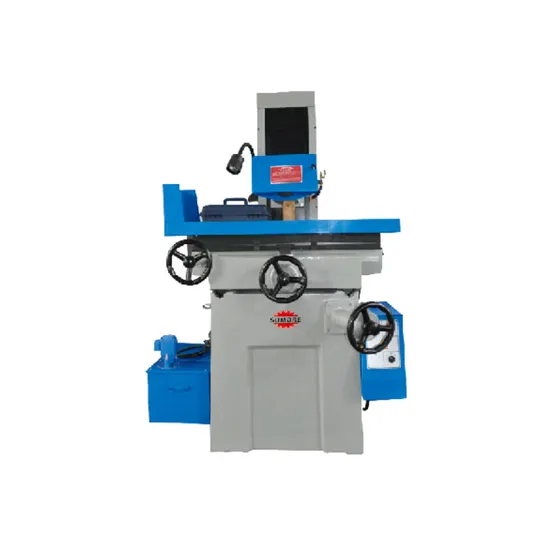

Product DescriptionFactory vertical surface grinders surface grinding machine manufacturers SP2504 Surface Grinder(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
Quick details
1.Table size:500*250mm
2.Max grinding length:560mm
3.Wheel size:200*20*31.75mm
4.Spindle motor:1.5KW
Featurs/Advantages
High rigidity & high sealing ensure no vibration- Accuracy
Digital size controller -Longer machining Accuracy
Simple operation
Suit for fine Grinding, Lapping and Polishing etc
Pre, main and post load position can be controlled by simple setting.
Operator gets more space for loading from upper wheel Swivel device. It can be equiped with semi or full automatic Loading or Unloading device.
Product Parameters
| Product Specifications | |
| Model | SP2504 |
| Max. workpiece to be Ground(L*W*H) | 560*250*490mm |
| Max. Grinding Length | 560mm |
| Max. Grinding Width | 250mm |
| Distance from Table to Surface to Spindle Center | 490mm |
| Slide way | V-type rail with Steel-ball |
| V-type rail with Stell-ball | 250kg |
| Table Size(L*W) | 500*250mm |
| Number of T-slot | 14*1mmxn |
| Cross Feed on Handwheel | 0.02/Graduation 2.5/revolution |
| Vertical Feed on Handwheel | 0.01Graduation 1.25/revolution |
| Wheel Size(dia x width x bore) | 200*20*31.75mm |
| Spindle speeds 50Hz | 2850rpm |
| Spindle motor | 1.5kw |
| Coolant Pump | 0.04kw |
| Paraller level | 300:0.005mm |
| Gross/Net Weight | 1100/1000kg |
| Packing size | 1280*1250*1880mm |
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
