Electric Self Propelled Aerial Work Platform for Sale 9m 10m 12m 14m 16m 19m 24m Articulating Boom Lift Man Lift Aerial Work Platform

Product Description

KINGDA HEAVY-DUTY
Professional manufacturer of high-altitude operation equipment Efficient high-altitude operation solution

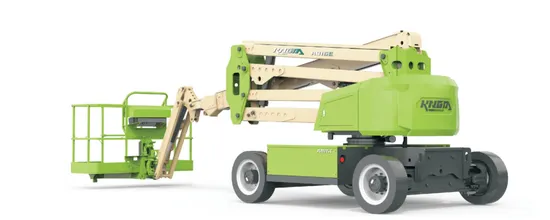

Articulating Boom Lift
Maximum Platform Height:16m
Product Feature

With 48V Dc battery pack, full scale handle control, thumb rocker steering,with functions of performing confrmation,tilt alarm,lowering and motionalarm.

Two-speed traveling,four-wheel drive and front axle foating of the whole machine.

Powerful diesel enginewith a maximum gradient of 45%.

With load sensing system and fault diagnosis system.

With emergency pump,emergency lowering and recovery of boom.

Screw-type engine tray,turntable with locking mechanism.

Standard Configuration

Proportional control	Emergency platform lowering	Auto-leveling
Self-locking door	Tubing explosion-proof	Foot switch
Full height drive	Diagnostic system	Load sensing system
Foam tires	Tilt protection	Hand brake release
Two-wheel drive	Action buzzer	Lanyard attachment points
Two-wheel steer	Electric horn	Tie-down and lifting points
Automatic braking	Time count	Emergency stop
Flashing beacons	Charge protection	Maintenance-free batteries
Rental management platform	GPS

Specification Parameters

Model	AB16EN
Size	Metric
Maximum Platform height	15.7 m
Maximum horizontal reach	8.6 m
Up and over clearance max.	7.6 m
Machine Length	7 m
Machine Width	1.95 m
Machine Height	2 m
Platform dimensions (length×width)	1.4×0.7 m
Ground clearance-center	0.2 m
Wheelbase	2 m
Tire size	250-15
Productivity
Working load	230 kg
Working load - restricted	/
Max. platform occupancy	2
Gradeability - stowed	30%
Drive speed - stowed	4.8 km/h
Drive speed - raised	0.8 km/h
Turning radius (inside/outside)	1.65/3.91 m
Tilt sensor activation (front to back/side to side)	3°
Turntable rotation	355°
Platform rotation	160°
Turntable tailswing	0
Power	48V DC
Hydraulic tank capacity/Fuel volume	320 AH
Weight	6700 kg

Application
It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
Certifications


Cooperation Partner
Our Factory
Packaging&Shipping
FAQ
Q:What's your main products of your company?A:We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC MillingMachine,CNC TurningMaching, Vertical Machining Center ,Horizontal MachiningCenter, Lathe Machines, Turning andmilling composite processing so onQ:Where do you export?A:The whole world.Q:Could you produce non-standard products?A:Yes, we can. Please supply samples or drawing.Q;How do you transport it?A:Provide Transportation Solution DDP/CIF/FOB/FCAQ: What's the Payment Terms?A:T/T ,30% initial payment when order,70% balance paymentt before shipment.Q:What's the MOQ?A:1 set .(Only some low cost machines will be more than 1 seet )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for ourevaluation if possible, better to send us workpiece drawing, so that we canrecommend you most suitable model!2.lf need CIF Price, please kindly tell us the port of destination
• Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.
