7.5kw 11kw 15kw 22kw Direct Driven Energy Saving Air-Compressor Industry Industrial Small Rotary Screw Air Compressor Machine Price
Basic Info.
Model NO.
GTA-75PM
Lubrication Style
Lubricated
Cooling System
Air Cooling
Power Source
AC Power
Cylinder Position
Angular
Structure Type
Closed Type
Installation Type
Stationary Type
Type
Single Screw Compressor
Voltage
220V/380V/440V/480V/575V/Customizable
Pressure
8-13bar
Noise
60±2~78±2dba
Free Air Delivery
0.7~43m3/Min
Transport Package
Wooden Package
Specification
1120*750*980mm
Trademark
GiantAir
Origin
China
HS Code
8414804100
Production Capacity
3000pieces/Month
Packaging & Delivery
Package Size
180.00cm * 100.00cm * 80.00cm
Package Gross Weight
5.000kg
Product Description

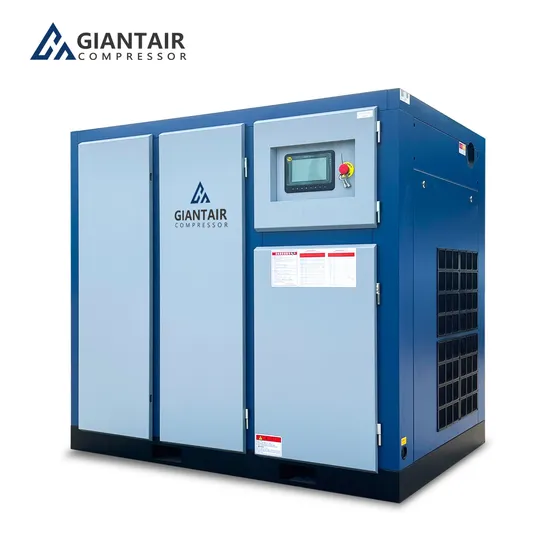

Product DescriptionProduct Name:Direct Driven Energy Saving PM VSD Screw Air Compressor
Power: 55KW 30HP
Pressure: 8bar
Air Flow: 1.7m3/min
Motor: Permanent Magent IP23 motor
Air End: Baosi Brand
Noise: 70±2dBA
Size: 1120*750*980mm
Weight: 290kg
Product Parameters
| Model | Pressure | Air Flow | Power | Noise | Air Outlet Size | Weight | Dimensions |
| GTA-5.5PM | 8bar/116psi | 0.6m3/min | 4kw/5.5hp | 63 | G 3/4 | 110 | 900*600*850 |
| GTA-7.5PM | 8bar/116psi | 0.85m3/min | 5.5kw/7.5hp | 68 | G 3/4 | 120 | 900*600*850 |
| GTA-10PM | 8bar/116psi | 1.1m3/min | 7.5kw/10hp | 68 | G 3/4 | 120 | 900*600*850 |
| GTA-15PM | 8bar/116psi | 1.8m3/min | 11kw/15hp | 70 | G 1 | 200 | 1000*700*1000 |
| GTA-20PM | 8bar/116psi | 2.3m3/min | 15kw/20hp | 70 | G 1 | 200 | 1000*700*1000 |
| GTA-25PM | 8bar/116psi | 2.9m3/min | 18.5kw/25hp | 72 | G 1 | 300 | 1300*790*1150 |
| GTA-30PM | 8bar/116psi | 3.3m3/min | 22kw/30hp | 72 | G 1 | 300 | 1300*790*1150 |
| GTA-40PM | 8bar/116psi | 4.7m3/min | 30kw/40hp | 72 | G 1 1/2 | 320 | 1300*790*1150 |
| GTA-50PM | 8bar/116psi | 6.2m3/min | 37kw/50hp | 72 | G 1 1/2 | 460 | 1400*950*1310 |
| GTA-60PM | 8bar/116psi | 6.5m3/min | 45kw/60hp | 72 | G1 1/2 | 600 | 1400*950*1310 |
Our Advantages
Company Profile
Exhibition
FAQ
Q1: Warranty terms of your machine?
A1: One year warranty for the machine and technical support according to your needs.
Q2: Will you provide some spare parts of the machines?
A2: Yes, of course.
Q3: What about product package?
A3: We pack our products strictly with standard seaworthy case.
Q4: Can you use our brand?
A4: Yes, OEM is available.
Q5: How long will you take to arrange production?
A5: 380V 50HZ we can delivery the goods within 3-15 days. Other voltage or other color we will delivery within 25-30 days.
Q6: How Many Staff Are There In your Factory?
A6: About 100.
Q7: What's your factory's production capacity?
A7: About 2000 units per month.
