Low Prices Automatically Crimper Hydraulic Hose Crimping Machine Blue Crimping Machine

Low Prices Automatically Crimper Hydraulic Hose Crimping Machine Blue Crimping Machine

US$280.00
1 Set
US$250.00
2-4 Sets
US$200.00
5+ Sets

Basic Info.

Model NO.
1/4" to 12"
Certification
ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Name
Crimper Hydraulic Hose Crimping Machine Blue Crimp
Application
Crimping Fittings for Hose Assemble
Certificate
ISO, CE
Capacity
R1 R2 4sh 4sp 2" or Customized
Color
Blue,Black or Customized
Packing Size
800*640*1300mm
MOQ
1 Piece
Packing
Plywood Case
Delviery Time
1 PC in 24 Hours After Payment
Motor Power
3kw/4kw
Voltage
110V, 220V, 240V, 380V
Aftersale Service
Online Support
Operation Mode
Automatic
Net Weight
280kg/PC
Gross Weight
300kg/PC
Transport Package
Plywood Case
Specification
1/4" to 12"
Trademark
YINLI
Origin
Hengshui, China
HS Code
8479899990
Production Capacity
1000m/Month

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 20.00cm
Package Gross Weight
25.000kg

Product Description

Product Description

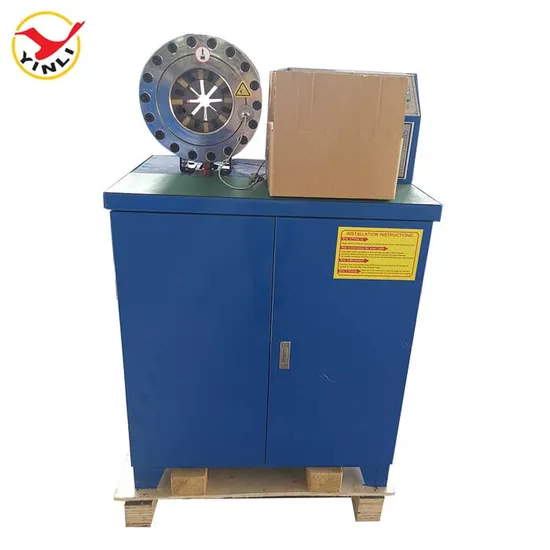

Low Prices Automatically Crimper Hydraulic Hose Crimping Machine Blue Crimping machineCrimping machine( Also can be called locking machine,pressing machine, crimper ,high pressure hose crimping machine, tube locking machine and so on.) is one kind of machines which can be used to lock and press the tubes assembly. It cn force contractility through the moulds to press and crimp the metal joints on the matching rubber tubes firmly.
ItemData DataData
Model No.500-C 2.5L500-C 5L500-C 10L
Lock and expansion rangeΦ1/4"to 2"Φ1/4"to 2"Φ1/4"to 2"
Dies 10 sets10 sets10 sets
Accuracy0.01mm0.01mm0.01mm
Displacement2.5 L10 L10 L
Power3 KW3 KW4 KW
System pressure31.5 M pa31.5 M pa31.5 M pa
Voltage220 V380 V380 V
Buckling pressure500 T500 T540 T
Press quantity120 /hour200 /hour400 /hour
Size (L×W×H)800×640×1300mm800×640×1300mm800×640×1300mm
Standard weight300KG300KG300KG
2 Iinch crimping machine 4 Iinch crimping machine 6 Iinch crimping machine
Light weight manual crimping machine Hydraulic hose skiving machine Hydraulic hose cutting machine
Relative products
Steel wire braided hydraulic hose(one or two steel wire braided )
SAE 100R1AT/DIN EN853 1SN/DIN-EN857 1SC/SAE 100R1A/DIN EN853 1ST
SAE 100R2AT/DIN EN853 2SN/DIN-EN857 2SC/SAE 100R1A/DIN EN853 2ST
SAE 100R5/SAE 100R16/SAE 100R17/Pressure washer hose
Multi spiral hydraulic hose (four or six high tensile steel wire spiral
DIN EN856 4SP/SAE 100R9/SAE 100R12/DIN EN856 4SH/SAE 100R13/SAE 100R15
Textile Braid Hydraulic Hose
SAE 100R3/SAE 100R6
Thermoplastic hydraulic hose
SAE 100R7/SAE 100R8
Other hydraulic hose
SAE 100R4/suction oil hose
SAE 100R14/PTFE HOSE
Industrial rubber hose
steam hose
Dredging hose
Air/Water hose
Fuel/oil hose
Water suction/delivery hose
Sandblast hoseComposite hose
Cement rubber hose
Concrete rubber hose
Chemical rubber hose
Food hose
Flexible stainless steel metal hose
Company Profile
FAQ
Q1. Are you factory?
A. Yes, we are a factory since 1997, which have more than 20 years experience on rubber hose production.
Q2. Do you produce embossed marking ?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, it's available except famous brand which are not allowed.
Q4. What is the biggest size you can produce?
A.Hydraulic hose inner diameter size up to 304mm, industrial rubber hose inner diameter size up to 1300mm.
Q5. Is colorful hose available?
A. Yes, we can produce the hose color buy your requirements.
Q5.What is your payment terms?
A. 30% deposit, 70% before delivery.
