Automated Noodle Packaging System with Intelligent Weighing Function
| US$35,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BJWD450/132 NHPB-III
Automatic Grade
Automatic
Application
Fish, Meat, Snack, Rice, Flour, Seasoning, Long Strip Food
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming
Driven Type
Electric
Material Type
Long Strip
Packaging
Bags
Packaging Material
Film
Motor Type
3 Servo Motor
Bag Type
Pillow Bag
Control System
PLC+Touch Screen
Machine Type
Packing Machine
Main Function
Weighing and Packing
Usage
Automatic Film Forming Sealing
Packing Capacity
30-60bags/Min
Packing Material
PE+OPP
PLC
Omron
Transport Package
Wooden Cases
Specification
SGS. ISO9001
Trademark
HICOCA
Origin
Qingdao, China
HS Code
8422303090
Production Capacity
10sets/Month
Product Description

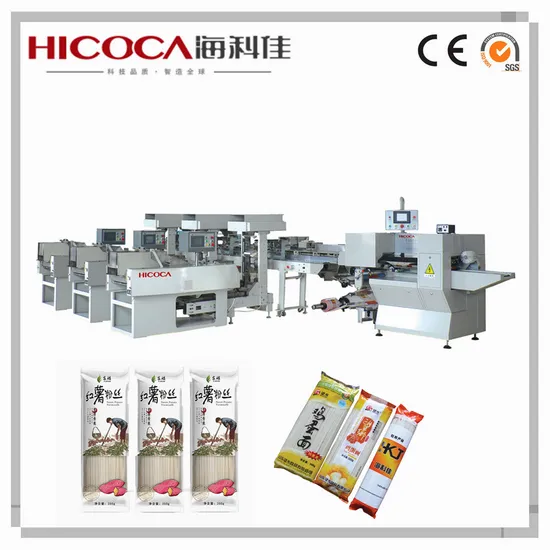

Full-automatic noodle weighing & packing machine
1> With Omron PLC and touch screen
2> With 3 servo motor control
3> With magic eyes tracing
4> Full automatic weighing, filling, forming and packing for noodle , spaghetti, long pasta, incense stick etc.
·Contains:
packing machine one set,
conveyor line one set,mixing device one set,
heaping device one set,accelerating device one set,
blank conveyor line three sets,hoist engine eight sets,bundling line eight sets,weighing machine eright sets
Usage:
automatically finish the process of weighting, outputting, filling and sealed packing of the Spaghetti and other noodle
Object | noodle, Spaghetti |
length of the noodle | 200g~500g:(180~260mm)±5.0mm;500g~1000g:(240~260mm)±5.0mm |
thickness of the noodle | 0.6~1.4mm |
width of the noodle | 0.8~3.0mm |
packing rate | 30~60/min |
weight range | 200~500g 200~1000g |
Inputting method | number input |
variable setting | 0.1g |
exact value | 200~500g ,±2.0g-96% 500~1000g,±3.0g-96% |
size | 6700mm×3400mm×1650mm |
voltage | AC220v/50-60HZ/5800W |
Advantage
1,Our packing machine use hign-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.
2,Adpoted latest technology and massify design. Long operating life
3,Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine
Benifit analysis
1,spare the manpower, Improve productivity: daily outputting 30t/5 person
2,Saving material resource.
3,Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.
