E-Waste Plastic PC/ABS Home Appliance Recycling &Washing Equipment

Product Description

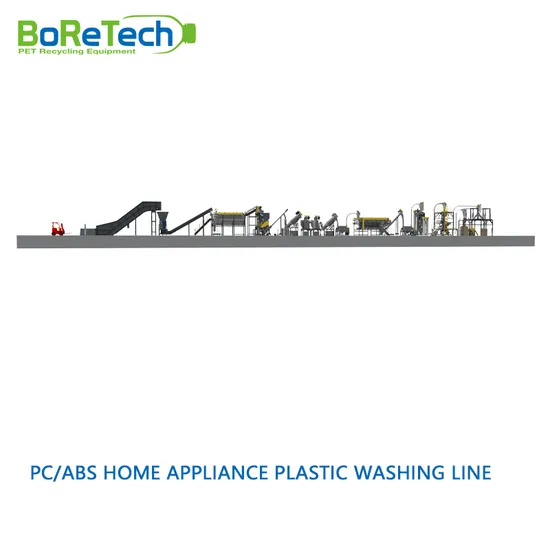

PC/ABS Home Appliance Plastic Washing Line, this line is suitable for recycling PC/ABS that is been disassembled from home appliances. This washing line can greatly increase the value of the final product and belongs to our high-end equipment series.
The capacity of PC/ABS Home Appliance Plastic Washing Lin: 1500 kg/h~3000 kg/h
Feature:
Boretech Rigid Plastic Recycling System can process a wide variety of plastic, with process design proven over the years. With a hot chemical washing module, the washing line can achieve better and more consistent quality for the end product.
-The entire washing line can be equipped with a DCS system and PLC control to minimize the usage of manpower.
-The washing line is also designed with a chemical water circulation system and an online rinse water circulation system to reduce carbon footprint.
-The washing line has a one-button start and stops design that makes it much easier on operation and maintenance.
Feeding---Shredding---Metal Removal---Flotation Separation---Crushing*2---Friction Washing---Hydro Washing---Friction Washing---Drying---Rinsing---Drying---Zig-zag Separation---Pneumatic conveying---Optical Sorting (optional)---Packing
Parameters Sheet
Parameters Sheet

Estimated Plant Parameters
Input Capacity (kg/h)	Required Area (m2)	Installed Power (kW)	Required Water (kg/h)	Required Steam (kg/h)	Required Compressed Air(m3/min)	Manpower
3000	1000	500	1.5	300	1	3-5

Production Consumption Table - Average Energy Consumption per ton of Material Processed
Capacity (kg/h)	Electricity Consumption (kW·h)	Steam (kg/h)	Washing Detergent (kg)	Water Consumption (ton)
3000	300	300	3	4.5-5

*Data above are based on laboratory calculations; material composition and management will affect the actual usage.
