5 Axis Italian Software Stone Cutting and Milling Machine for Marble Granite Quartz Porcelain Slab and Countertop

5 Axis Italian Software Stone Cutting and Milling Machine for Marble Granite Quartz Porcelain Slab and Countertop

US$24,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZLBS-425CNC/5+1A&ZLBS-425CNC/4+1A
Type
CNC Cutting Machine
Usage
Ceramics, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V/220V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Control Center
Industry Computer with CNC
Driving Motor
Servo Motor
Railway
Linear Railway
Dimensions
L5750*W3260*H3800mm
Maximum Cutting
L3500xw2000xh90mm
Maximum Chamfering Size
L3500xw2000xh60mm
Transport Package
Plastic Film Packaging
Specification
L5750*W3260*H3800
Trademark
ZL MACHINE
Origin
Taizhou, Zhejiang Province
HS Code
8464209000
Production Capacity
1000

Product Description

Product Parameters

Model 4+1 Axis CNC bridge saw 5+1 Axis CNC bridge saw Unit
Worktable size L3500*W2000 L3500*W2000 mm
Maximum cutting L3500*W2000*H90 L3500*W2000*H90 mm
Maximum chamfering L3500*W2000*H50 L3500*W2000*H50 mm
Blade diameter 350-425mm 350-425mm mm
Main motor power 15 22(permanet magnet motor with frequency) kw
Router power 5.5 5.5 kw
Control center industry computer with CNC industry computer with CNC
Driving motor Servo motor Servo motor
Router max speed 24000 24000 RPM
Total power 25 32 kw
Suction cup lifting weight 200 200 kg
Head rotate 0°-360° 0°-360°
Head tilt 0°and 45° 0°-90°
Cylinders 5 5 group
Dimensions L5750*W3260*H3800 L5750*W3260*H3800 mm
Water consumption 2 2 m³/h
Total weight 5 5 t
Main part delivered size 5750x2200x2500 5750x2200x2500 mm
Machine delivered method Main part delivered as whole(HQ container) Main part delivered as whole(HQ container)

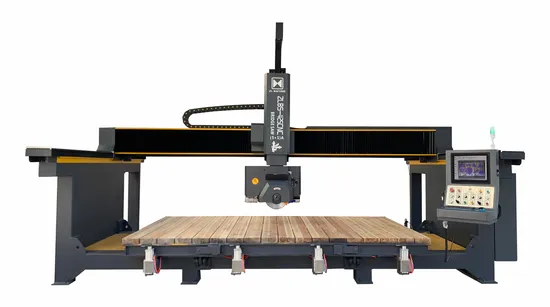

5+1 Axis CNC bridge saw
4+1 Axis CNC bridge saw
Product Description
For processing marble, granite, porcelain, and quartz stone countertops, we provide CNC bridge saws of the ZLBS-425CNC/(4+1) A type and the ZLBS-425CNC/(5+1) A type. They are precise, effective, and user-friendly machines. Take a picture first, then load the drawing and start by aiming the plate inside the picture. Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate combined processing steps according to the program.Therefore, the machine is used to help install countertops without any dust. We also provide OEM/ODM production machine service; if you require anything, feel free to contact us.
Option: Chinese local system,
or ESA hardware with Pegasus software from Italy.

1: The machine is a conjoined structure; it takes up less space and is easy to install and move.
2: This machine has an excellent chamfering range of 3500x2000mm.
3: With an industrial computer and a 17" color touch-screen.
4: Use a camera to locate the position of the plate and display it in the cutting procedure.
5: The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
6: An automatic tool setting gauge is equipped that automatically checks the blade.
7: The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
8: The worktable can be flipped up to 85°.
9: A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
10: Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plate and rubber
