Cement Full Automatic Brick Making Machine Best Price

Product Description

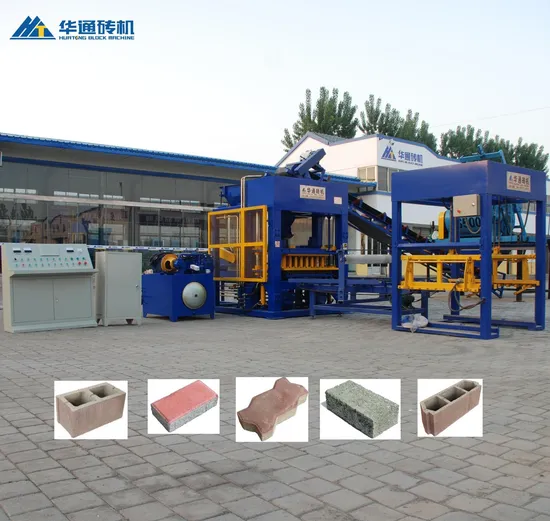

QT5-15 fully autoamtic brick making machine
Product Description
1.The Machine adopts four galvanized pipe with sleeve bearing to ensure the exact movement of mould.Concrete feeder adopts Orienting Way Operation that will decrease the friction with mould and realize perfect concrete feeding..
2.The Vibration System adopts German Frequency Conversion Technique.The vibration motor is Frequency Conversion Controlled.The lubrication of Vibrator adopts oil immersed,which improve the using life of Bearing and Gear of vibrator.
3.Moulding is by table vibration and hydraulic pressure.Wet blocks made by our machine has good density.Solid blocks can be taken off pallet and save pallet cost.
4.The Mould is made with heat treatments of quenching,tempering,carbonization and boriding.Working life of mould is improved.

5.The Electric Control System adopts Siemens PLC,Omron proximity sensors.
Product Parameters

Dimension	3000x1900x2930mm
Weight	10T
Pallet Size	1100 x700mm
Power	38.7KW
Mode of Vibration	Table Vibration
Vibration Frequency	4200r/min
Vibration Force	70KN
Cycle Time	15-25sec

Production Capacity:
Block sample:
Company Profile
Shandong Gaotang Huatong Hydraulic Machinery Co., Ltd. is located in Renhe Industrial Park, Gaotang County, Shandong Province. It is one of the large manufacturers specializing in the production of non-burning brick machines.
Our company was founded in 2004. After more than ten years of development, from an annual output of more than a dozen small brick machines to an annual output of hundreds of large brick machine production lines, Huatong now covers an area of 65000 square meters and a construction area of 19000 square meters. It has modern production workshops and office facilities, complete machine tools, heat treatment, rust removal and shot blasting equipment, and welding equipment, and has gathered a large number of senior technical and management personnel. There are 4 senior engineers, there are 8 engineers, more than 60 talents with college education or above, and more than 600 technicians of various types.
Packaging & Shipping
Different countries customers work site:
ISO certificate:
Specifications of JS500 Concrete Mixer:

Charging Capacity (L)		800	Discharging Capacity(L)	500
Maximum Production(m3/h)		25	Aggregate Maxi Diameter(mm)	80mm
Mixing Blade	Speed(r/min)	35	Mixing Motor(kw)	18.5
	Quantity	27	Hoist Motor(kw)	5.5
Water Pump Motor(kw)		0.75	Discharging Mode	Manual/ Pneumatic
Discharging Height(m)		1.5/2.7/3.8	Weight (kg)	4000
Transport Dimension		3030x2300x2680	Working Dimension (mm)	4486x3030x5280
