Automatic Professional Double Facer Corrugated Carton Box Cardboard Making Folding Machine

Automatic Professional Double Facer Corrugated Carton Box Cardboard Making Folding Machine

US$60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Double Facer
Condition
New
Certification
ISO 9001:2008, GB/T19001-2008
Automation
Automatic
Suitable for
Recycled Material, Paper
Paper Thickness
Normal Specification Paper
Working Width
1400-2800mm
Working Speed
100-150m/Min
Standard Colour
Grey or Ivory White
Press Method
Hot Plate or Press Roller
Heating Method
Steam
Mechanical Movement
Pneumatic
Hot Plate Qty.
12 Units
Cold Part Length
4m
Transport Package
Film Wrapping, Oiled and Tray;
Specification
Tungsten Carbide
Trademark
Ding Hao
Origin
Dongguang County, Cangzhou City, Hebei, China
HS Code
8439300000
Production Capacity
50 Units Per Year

Product Description

Detailed Photos

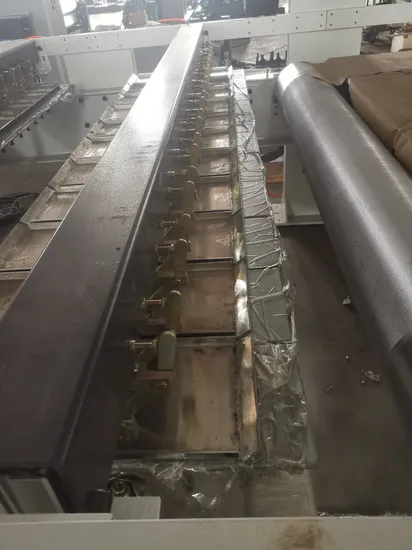

The double facer is designed to heat, dry and shape the corrugated cardboard. It consists of two parts, the drying and shaping system, plus the main driving system. The body of the double facer is surrounded with cotton belt. The main driving system functions as a pusher of the cotton belt to further make the cardboard move forwards. Product Description The main body of double facer is made of high strength wide channel steel for stable running at high speed. Touch plate is applied to both hot part and cooling part for auto stable lifting with safety and reliability. Hot plate is professionally fabricated as per the National Safety Standard of Pressure Vessel, which features S-shape airflow design inside to improve the steam utilization ratio. In addition, it's welded with multi-piece reinforcing ribs to keep them in shape under high temperature. The steam inlet and outlet in the pipeline are crossed for uniform temperature of hot plates. The drive part adopts large diameter anilox wearable rubber to reduce the frequency of belt slipping for high running stability. The main drive shaft is matched with speed encoder to be on line with glue machine. The variable frequency drive motor is adopted for wide-range speed adjusting and stable running. The separate drive box is in bevel gear structure with high precision and strength gears made of good quality alloy steel treated with heating and fine fabricating for low noise and large transmitted torque, easy for service and maintenance. The separate oil pumps matched with copper tubes are arranged at bearing and gear locations for cooling to improve the service life of gear box. Product Parameters
Model DF-C Doubla Backer
Working Width 1400-2800mm
Max Design Speed 200-300m/min
Heating Source Steam
Hot Plate Material 50CrMo
Packaging & Shipping
Certifications FAQ 1. Are you manufacturer or trading company?
We a combination of manufacturer and trading company.
2. What is the payment term you accept?
We usually accept T/T. DP and LC are also ok for us.
We need 30% payment as deposit to arrange production and the balance should be paid before shipping.
3. What is your leading time in average? How much time needs for installation?
The manufacturing period for machine is 45 days since deposit is received and installation period is around 7 days.
4. How do we install and debug machine?
Engineer guides installation and debug machine via video or on site.
5. Where is factory? How can we visit there?
Factory is at Mianfang Road 36, Dongguang County, Cangzhou City, Hebei Province, China.
It is near to Beijing and Tianjin, so after you get Beijing or Tianjin airport, we will pick you up to factory
