1bz3.4width 3.4m Hydraulic Heavy Duty Disc Harrow for 120HP Tractor Trailed Agricultural Machinery

1bz3.4width 3.4m Hydraulic Heavy Duty Disc Harrow for 120HP Tractor Trailed Agricultural Machinery

US$1,700.00
1-9 Pieces
US$1,600.00
10+ Pieces

Basic Info.

Model NO.
LK
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
According to Customer Requirements
Warranty
12 Months
Model
1bz-1.8
Width of Cut(mm)
1800
Deoth of Cut (mm)
200
Dia of Disc(mm)
660
Number of Plow Blades
16
Weigh(Kg)
1160
Tractor Power
70
Transport Package
Wooden Box
Specification
1160KG
Trademark
LK
Origin
China
HS Code
8432210000
Production Capacity
5000unit/Year

Packaging & Delivery

Package Size
100.00cm * 140.00cm * 100.00cm
Package Gross Weight
500.000kg

Product Description

Product Description

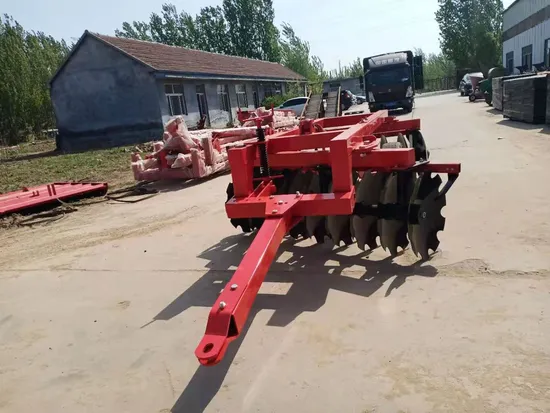

1BZ series hydraulic heavy disc harrow product description1BZ series hydraulic heavy disc harrow has the high working efficiency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated field and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.1BZ series hydraulic heavy disc harrow product selling points1. They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2. Strong ability of soil pulverization.It could be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3. Fit the scraper for each disc blade to clean the objects.
4. Hydraulic heavy duty disc harrow is trailed for 80-400hp tractor.
5.High quality of difunctional oil cylinder.Own hydraulic system to lift and down the transport wheel freely.
6. Widely working width of this heavy disc harrow to be 2-6m.
7. The working depth can be adjusted freely.Maximum harrowing depth on uncultivated land can reach 180-350mm.
8. Compact and strong structure make the machine have long service life.
9. The materail of plough disc is 65Mn spring steel,it is more strong.
10. Strong and durable bearing.
Product Parameters
Product parameters
Model 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4 1BZ-4.0
Width of cut (mm) 2200 2500 3000 3400 4000
Depth of cut (mm) 200
Number of rake blades 20 24 28 32 36
Dia of disc(mm) 660*5
Weight (kg) 1250 1350 1430 1550 1900
Tractor power (hp) 80 90 100 120 150
