Efficient Vacuum Forming Machine for Fast Food Box Container Clamshell Box Production

Efficient Vacuum Forming Machine for Fast Food Box Container Clamshell Box Production

US$170,000.00-250,000.00 1 Set (MOQ)

Basic Info.

Model NO.
FSCT820/650 Series
Certification
CE, SGS
Column number
Four Column
Molding Method
Thermoforming
Automatic Grade
Automatic
Model
Fsct820/650
Forming Area
820*650mm
Raw Materials
PP/Pet/PS/PLA
Stations
2/3/4 Stations
Products
Lid/Container/Box/Plate
Maximum Forming Depth
150mm
Process
Forming-Punching-Cutting-Stacking
Power Supply
380V, 50Hz
Sheet Thickness
0.15-2mm
Maximum Sheet Width
860mm
Automatic
Fully Automatic
Loading Material
Motor Loading
Key Word
Food Container Forming Machine
Location
Pingyang City, Zhejiang Province
Applicable Sheet
PP, HIPS, PS, Pet, etc.
Transport Package
Wood/Stretch Film Packaging
Specification
FSCT820/650
Trademark
Sayeah
Origin
Zhejiang, China
HS Code
8477409000
Production Capacity
30 Sets /Year

Packaging & Delivery

Package Size
1250.00cm * 290.00cm * 295.00cm
Package Gross Weight
25000.000kg

Product Description

Efficient Vacuum Forming Machine for Fast Food Box Container Clamshell Box Production
Product Description

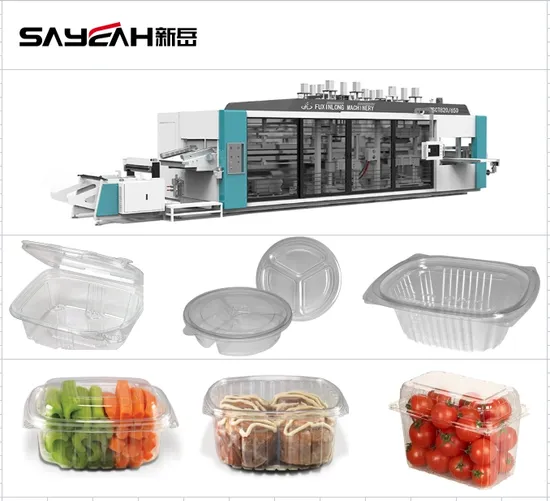

The model of FSCT-820/650 thermoforming machine is our lastest developed products, it combines forming, punching, cutting and stacking in one process.This machine is specialized for forming PP, PS, HIPS, PVC, PET,OPS, EPS, C-PET, PLA, C-PLA, ABS or other materials sheet that can be widely used to produce all kinds of food and non-food packaging products like plastic trays, containers, boxes, lids and son on.
Features
1. European design, complete functions, suitable for diversified production lines, safe, efficient, energy-saving and hygienic
2. Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
3. Operator-friendly HMI, and the system has the function of remote connection
4. Fast and accurate temperature control system (error ± 1 degree), with hot furnace detection material drop and air source low pressure protection system
5. Intelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown
6. It can share molds with models of most well-known brands at home and abroad, and cooperate with existing production lines
7. Fast mold change system, which can facilitate fast, accurate and safe mold change and reduce machine downtime
8. Under any forming scheme, the clamping frame and plug assist function can be used alone or at the same time, greatly simplify the mold structure
9. Materials with strong shrinkage can adopt the single station in-mold-forming-cutting function to 100% ensure the edge cutting accuracy
10. High precision forming and cutting technology to achieve the perfect forming and cutting performance of high-speed control and low wear
11. The stacking station can be customized, which simplifies the stacking of complex parts and is convenient to meet further production needs
12. Optimize the design of electric cabinet and simplify the machine assembly and wiring installation process
Model 3 4
Max Forming area 820x650mm
Max Forming Depth and Height 150/150mm
Max Sheet Width 860mm
Max Sheet Roll Diameter 1100mm 1 Ton
Power 200kw 215kw
Dimension 11200x2900x2950mm 12500x2900x2950mm
Sheet Thickness 0.15-2mm
Max No-load Speed
65 Cycles/min
Weight 20T 25T

Detailed Photos
We use the motor screw loading device, the maximum support 1 ton weight and 1.1 meters diameter sheet roll, and support double rolls of sheet, the production can quickly change the coil to shorten the coil change time.
This is the heater, the heater is marked with a number, which can help us quickly find the corresponding heater on the touch screen to adjust the temperature. Part of the heater can be turned off according to the customer's product. When the machine is shut down, the heater will automatically exit to prevent excessive heating of the sheet.
This is the stacking station, servo-driven, it can be stacked single-axis, rotary stacking, can be designed according to customer needs.

Main Electrical Components
Industrial control system DELTA TAIWAN / Inovance Shenzheng
PLC DELTA TAIWAN / Inovance Shenzheng
Touch screen interface DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive DELTA TAIWAN / Inovance Shenzheng
Vacuum pump RUFUS,Jiangsu
Infrared ceramic heater Tianbao, CHINA (3 years Warranty)
Solid state relay SHANGHAI, AOYI
Pneumatic components MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing
