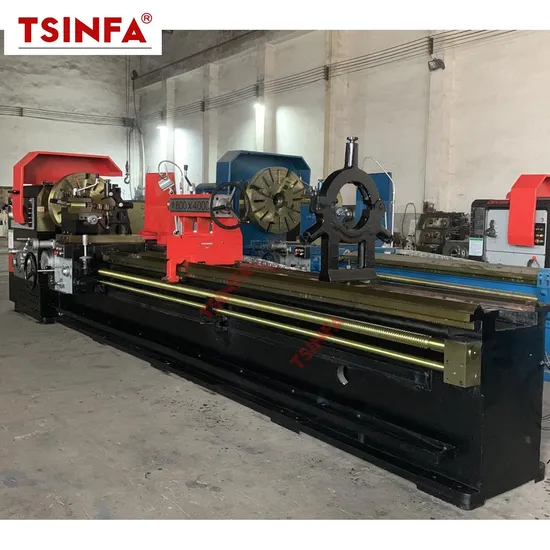

Horizontal Operation Metal Cutting Manual Heavy Lathe Machine Cw6180*10000mm

Horizontal Operation Metal Cutting Manual Heavy Lathe Machine Cw6180*10000mm

US$19,000.00-46,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CW6180
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Station Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Max. Length of Workpiece (mm)
1500-15000
Spindle Bore
105
Max. Workpiece Weight
2 Ton
Max .Swing Diameter Over Bed
800mm
Width of Bed
550mm
Main Motor
11kw
Transport Package
Pallet/Wooden Case
Trademark
TSINFA
Origin
China
HS Code
8458190000
Production Capacity
500peices/Year

Product Description

Product Description
Horizontal Lathe Machine Heavy duty lathe CW6180 big bore 105mm for Cutting Metal
Product Parameters
tems Unit CW6163Q CW6180Q CW6180B
Swing over bed mm 630 800 800
Swing over carriage/cross slide mm 350 480 480
Swing over gap (Optional) mm 800 1000 1000
Guide rail width mm 550 550 600
Max. Weight of work piece ton 2 2 2.5
Max. Length of work piece between two centers mm 1500-15000
Spindle bore and nose head mm Φ105;A2-11
Taper spindle hole front cone and top mm φ120 , MT5
Spindle speed and range r/min 18kinds; 7.5-1000 18kinds; 7.5-1000 18kinds; 5.4-720
Metric threads mm 1-240mm (50 kinds) with14 non-standard threads
Inch threads TPI 14-1 (26 kinds )
Module threads 0.5-120mm (53 kinds )
Diametric threads DP 28-1 (24kinds )
Steps and range of longitudinal feeds range mm/r 64kinds; 0.05-24.3
Range 1:1 mm/r 0.1-1.52
Range 16:1 mm/r 1.6-24.3
Range of micro feed with change gear mm/r 0.06-0.912
Longitudinal and cross feed rate 1/2
Rapid move speed of carriage mm/min 4000
Max. Travel of lower knife slide mm 420 500 500
Max. Travel of upper knife sllide mm 200
Sleeve travel mm 250
Tailstock sleeve taper MT6#
Main motor power kw 11
Rapid move motor power kw 1.1
Coolant pump power w 90

Detailed Photos
Certifications
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?
Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!2. lf need ClF Price, please kindly tell us the port of destination.
