Flat grinding machine surface grinding machine price MY4080
| US$2,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MY4080
Abrasives
Grinding Wheel
Controlling Mode
Hydraulic
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Surface Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
400X800mm
spindle power
4kw
Wheel Size
355X40X127
Max weight of workpiece
210kgs
Transport Package
Plywood Case
Specification
3150Kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
DESCRIPTION OF GOODS
Longitudinal movement is controlled by hydraulic system
Transverse movement is controlled by electric motor
Up and down movement is controlled by lift motor
Adopt the exceeding precise P4 level Harbin bearing
Adopting Taiwan TOYOTA pump 3K25
| STANDARD ACCESSORIES AS FOLLOWS |
| Machine stand pad |
| foot-screw |
| Water tank |

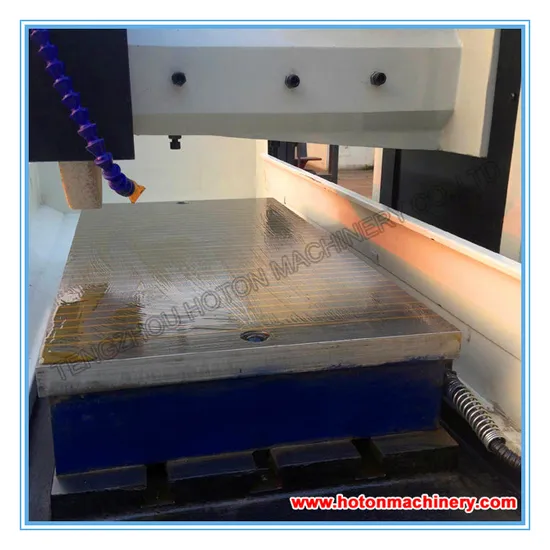

| Electromagnetic chuck |
| Balancing stand |
| Work lamp |
| Inner hexagon spanner |
| Tools and tool box |
| Balancing shaft |
| Wheel dresser |
| Diamond pen |
| Wheel and wheel chuck |
| drainage snake tube |
| flushing bag wire tube |
| MODEL | MY4080 | ||||
| Working table | Table Size (L× W) | mm | 800x*400 | ||
| Max movement of working table(L× W) | mm | 900x480 | |||
| T-Slot(number×width) | mm | 3×14 | |||
| Max weight of workpiece | kg | 210kgs | |||
| Grinding wheel | Max distance from spindle center to table surface | mm | 650 | ||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ355×40×Φ127 | |||
| Wheel speed | 60HZ | r/min | 1680 | ||
| Feed amount | Longitudinal speed of working table | m/min | 3-25 | ||
| Cross feed(front and rear) on handwheel | Continuously(Variable Transmission) | mm/min | 600 | ||
| Intermittently(Variable Transmission) | mm/times | 0-8 | |||
| Per revolution | mm | 5.0 | |||
| Per graduation | mm | 0.02 | |||
| Vertical(up and down) feed on handwheel | Per revolution | mm | 0.8(1.0) | ||
| Per graduation | mm | 0.01 | |||
| Speed of vertical feed | mm/min | 500 | |||
| Motor power | Spindle motor | Kw | 4 | ||
| Coolant pump motor | W | 125 | |||
| Lifting motor | W | 180 | |||
| Hydraulic motor | kw | 2.2*6 | |||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | ||
| Surface roughness | μm | Ra0.4 | |||
| Overall dimension(L×W×H) | mm | 2560x1990x1990 | |||
| weight | kgs | 2750/3150 | |||
| Contact Us: |
| Ashley Liu TENGZHOU HOTON MACHINERY CO.,LTD MP/Wechat:0086 18266002891 ashley@hotonmachinery.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
