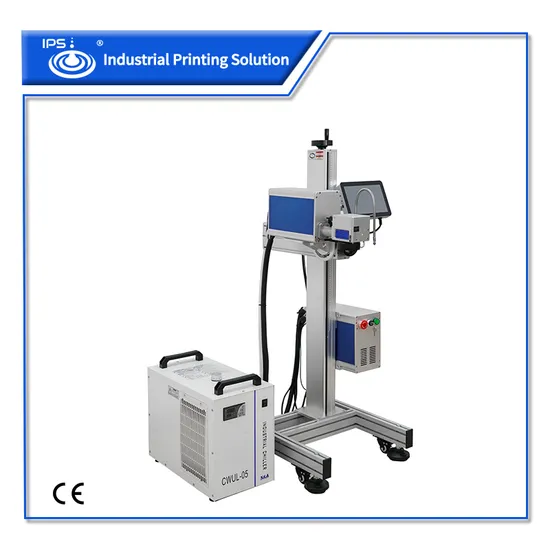

3W Fly Online Dynamic Face Mask UV Ultraviolet Laser Marking Machine with CE Certificate

3W Fly Online Dynamic Face Mask UV Ultraviolet Laser Marking Machine with CE Certificate

US$7,200.00
1-4 Sets
US$6,200.00
5-9 Sets
US$5,950.00
10+ Sets

Basic Info.

Model NO.
IPS-LUV3 F
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Wavelength
355nm
Laser Classification
UV Laser
Type
YAG Laser Marking Machine
Marking Method
Scanning Marking
Model
IPS-Luv5 F/IPS-Luv3 F/IPS-Luv10 F
Laser Power
3W/5W/10W/15W
Laser Gun Brand Name
Jpt 5W
Other Brand
Inngu/Gain
Laser Wavalenth
355nm
Laser Frequency
10kHz-100kHz
Linear Speed
8000mm/S
Lens Size
110*110mm/175*175mm/200*200mm
Weight
87kg
Suitable for Material
Glass, PP/ PE /PVC, White Products
Screen Size
10.4 Touch Screen
Language
English Russian Thailand Korea Arabic Portuguese
Other Language
Can Develop All Language Interface and Font
Operation System
Android
Overal Power
Less Than 2000 Watt
Transport Package
Packed in Wood Carton
Specification
780*600*1450MM
Trademark
IPS
Origin
China
HS Code
8456110090
Production Capacity
1000 Set/Month

Product Description

3W Fly Online Dynamic Face Mask UV Ultraviolet Laser Marking Machine with CE Certificate
Laser power: 3W/5W/10W/15W. The price above is for 5w fly model.
UV Laser is the best choice for face mask , PP/PE/PVC/PET and white products.
Support customized staring screen and logo, multiple language. All language can accept beacause our system is based on android sytem.
UV laser marking machine use the wavelength of 355nm ultraviolet laser, which has very small focus spot and can greatly reduce the mechanical deformation and processing heat effect of the material.UV laser is mainly used for ultra-fine marking, especially suitable for food, pharmaceutical, micropores punching, high-speed cutting of glass materials and the complex graphic cutting of silicon wafers.
UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be separated from the material so that the way they work does not produce any heat. This is very different from traditional fiber and carbon dioxide laser marking machines.
Differences from other laser marking machine The wavelength of UV laser is only 355 nm, while fiber is 1064 nm and CO2 is 10.64 μm. When the wavelength is shorter, the laser bean is smaller and more precise, and the Heat-affected zone formed during processing is smaller also, which makes the marking accurate and fine. CO2 laser marking machine and fiber laser marking machine are physical marking method, but UV laser marking machine is a chemical processing method, mainly by photochemical reaction. The difference is that the physical processing method is mainly happed on the surface of the material, while by chemical processing method, the laser can proceed deep inside of the material. Fiber laser marking machine is mainly used in metal material. Due to the heat generated by its beam, it is not suitable for marking high-precision special materials. UV laser marking machine is particularly suitable for high-end market which need ultra-fine processing, such as marking of cosmetics, pharmaceuticals and other packages by polymers materials. Applications
Cosmetics, mobile phones , pharmaceuticals, food packaging, metal, glass, plastic, polymer materials, construction materials, special ABS material, flexible PCB boards, plastic buttons, silicon wafer micropores, electronic component, communications equipment, LCD glass.
SPECIFICATIONS OF IPS-LUV3 F
MODEL IPS-LUV3 F ( 5W Fly UV Laser Marking Machine)
Laser power 3W
Laser Gun Brand JPT
Laser Wavelength 355nm
Focus system Two Red Light with accurate position
Scanning System Digital Scanning Galvanometer with high seep motor
Indication System Inner Red Outline Indication
Cooling System External Water Cooling
Marking Size 75*75mm, 150*150mm, 200*200mm, 300*300mm
Min Linewidth 0.01 MM
Min Font Height 0.01 MM
Repetition Accuracy +-0.002 mm
Pulse Width <20 ns @30KHZ
Pulse Repetition Rate 10-100KHZ
Optical quality <1.2
Laser crystal working time Around 20000 hours
Overall Power Around 2000 watt
Power Supply 220V/50-60HZ/5A/1P
Flying System 10.4 inch professional fly marking system based on Android
Weight 87 KG
File Format Support Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file.Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases.
Language support English,Russian, Thailand, Korea ,Arabic ,Portuguese ( Can develop all language)
