Fish Oil Separation High Speed Tubular Centrifuge

Product Description

Product Description
Fish Oil Separation High Speed Tubular Centrifuge Brief introduction of the Tubular Centrifuge:
The Tubular Centrifuge, offered by Zhengzhou Toper Industrial Equipment Co., Ltd., is a centrifugal equipment with a high separation factor capable of separating particles as small as 1 micron. It is ideal for extraction, enrichment, and clarification processes in industries such as food, chemical, beverage, pharmaceutical, and more.
Advantages:
Good separation effect High yield Small footprint Easy operation Types:
Clarify Series GQ: Suitable for solid-liquid separation Separation Series GF: Ideal for liquid-liquid-solid separation with few impurities GF Separation Series:
This type is designed for separating industrial suspensions that are difficult to separate, especially liquid-liquid suspensions with small specific gravity differences. It efficiently separates liquids and solids, allowing for easy discharge of each component.
Product Parameters
Fish Oil Separation High Speed Tubular Centrifuge Industrial centrifuge for oil separation with large capacity. Efficient solid bowl design. 12-month warranty. Online service available.

Model	drum					nozzle diameter (mm)	Productivity (water flow) (kg/h)	Power (kw)	weight (kg)
	Inner diameter (mm)	Height (mm)	volume (L)	Rotary speed (r/min)	separation factor
GF45	45	280	0.45	50000	60000	2,3	150	0.75	90
GF75	75	450	2.7	21000	22500	4,6	500	1.5	300
GF105	105	730	6	19000	21000	6,8	1500	2.2	480
GF125	125	730	7.4	16000	18000	5,8,9	2000	3.0	520
GF137	137	730	9	15000	17000	6,8,10	3000	3.0	550
GF150	142	730	10	15000	17000	8,10,12	3000	3.0	550

Detailed Photos

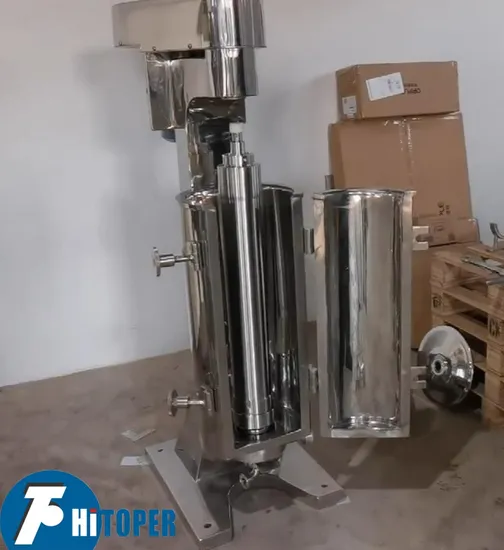

More photos of the tubular centrifuge:
GF Series Tubular Centrifuge The GF series tubular centrifuge, manufactured by Zhengzhou Toper Industrial Equipment Co., Ltd., is designed for separating emulsions and mixing various liquid-liquid-solid phases with minimal impurities. It achieves optimal separation results when the impurity or solid phase content in the liquid is below 1%. If the percentage exceeds 1%, clarification is recommended before operation.
During operation, the mixed slurry is introduced into the bowl through the bottom inlet. The centrifugal force causes the liquids to separate based on their densities, with heavy liquid (water) forming the outer ring and light liquid (oil) forming the inner ring. The separated liquids are discharged through their respective outlets, while any remaining particles settle on the bowl's wall for manual removal after the machine stops.
Essential oils can be extracted using two main methods, both of which involve liquid-liquid separation using the tubular centrifuge:
Steam Distillation: This common extraction method involves heating aromatic plant material with steam in a distiller. The essential oil evaporates with the steam, which is then cooled and separated based on specific gravity. This method is cost-effective and widely used for extracting essential oils. Freezing Compression Method: Specifically used for extracting essential oils from citrus fruit peels, this method involves adding water during crushing, collecting the juice, and separating the essential oil using a refrigerating centrifuge. Related Centrifuge
