High Speed Protection 1X2 2X2 Mo-Switch
| US$500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1x2 2x2 MO-Switch
Certification
ISO, RoHS
Condition
New
Transport Package
Box
Specification
Small
Trademark
ZG
Origin
Mianyang, China
Product Description

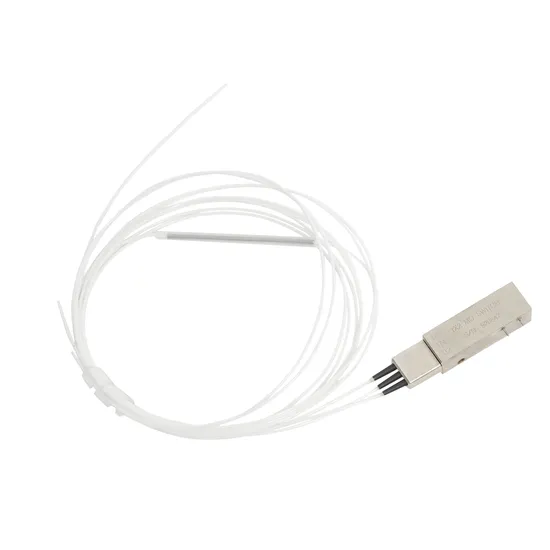

Ziguan photonics' 1x2or 2x1 optical switch is an all solid-state device without any moving parts. The switching of the optical light is realized by utilizing Faraday Effect.This is achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The microsecond fiber optic switch is designed to meet the most| Item | Unit | Parameters | Notes |
| Wavelength Range | nm | 1525~1565 | Other band optional |
| Insertion Loss | dB | 0.7(Typ.); 1.1 (Max.) | |
| PDL | dB | 0.1 (Typ.); 0.2 (Max.) | |
| Return Loss | dB | 40 | |
| Cross-talk | dB | 40 | Typical >50dB |
| PMD | ps | 0.2 | |
| Repeatability | dB | +/- 0.01 | |
| Durability | cycles | >100Billions | |
| Switching Speed | μs | 10~30/200~400 | Other speed optional |
| Storage Temperature | P0PC | -40~85 | |
| Operating Temperature | P0PC | -5~70 | |
| Maximum Optical Power | mW | 500 | High power optional |
| Dimension( L×W×H ) | mm | 28×9.5× 7.8 |
1.All the specifications are based on the devices without connectors, and guarantee it within the wavelength, polarization and temperature range.
Dimension(mm)
Electrical Specifications
| Parameters | Specifications | Unit | |
| Regular | Ultra-fast | ||
| Switching Speed | 200~400 | 10~30 | μs |
| Switching Voltage (VCC) | 5 (+/-5%) | 6.0~7.0 | V |
| Switching Current | < 100 | < 350 | mA |
| Driving Mode | Voltage or Pulse Driving | Pulse Driving | NA |
| Pulse Width (typical) | 1000 | 20 | μs |
| Claim Frequency | <800 | < 3000 | Hz |
Pin control signal corresponding to switching status table
| Pin1 | Pin2 | The Optical Output Port |
| 1(Voltage = VCC) | 0(Voltage = GND) | IN-----OUT1 |
| 0(Voltage = GND) | 1(Voltage = VCC) | IN------ OUT2 |
| 1(Voltage = VCC) | 0(Voltage = GND) | OUT2------IN |
| 0(Voltage = GND) | 1(Voltage = VCC) | OUT1------IN |
Ordering Information (Example: ZGS-111210)
| ZG- | Working mode | Switching speed | Operating wavelength | Fiber type | Fiber length | Connector type | |
| 1.Regular 2. Bidirectional | 1.200~400us 2.10~30us 3. Others | 1.CBand1525~1565 nm 2. L Band 1565-1615 nm 3. C & L Band 4. Others | 1.250μm fiber 2. 900μm fiber 3. Others | 1.0.5 +/- 0.1 m 2. 1.0 +/- 0.1 m 3. Others | 0.No Connector 1. FC/UPC 2. FC/APC 3. SC/UPC 4. SC/APC 5. Others | ||
