Universal Heavy Duty Pipe Threading Lathe Machine Q1313 Q1319 Q1322

Product Description

Universal Heavy Duty Pipe Threading Lathe Machine Q1313 Q1319 Q1322
Product Description

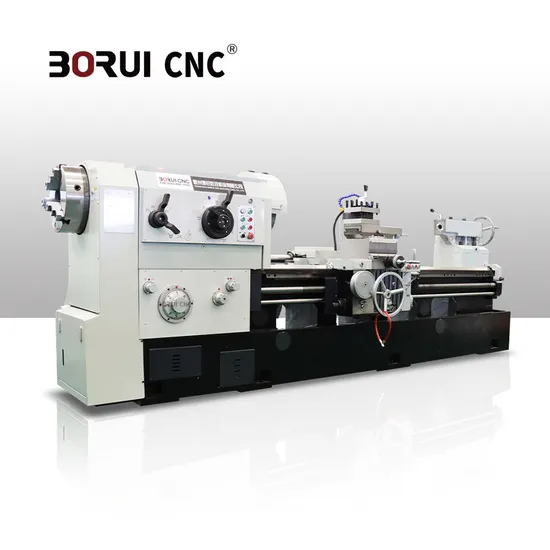

Q1313 horizontal pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Product Parameters
Product main technical specification:

Specifications		UNIT	Q1313	Q1319	Q1322
Capacity	Swing over bed	mm	630/800	630/800	630/800
	Swing over cross slide	mm	340/540	340/540	340/540
	Distance between centers	mm	1500/3000	1500/3000	1500/3000
	Pipe threading range	mm	30-126	50-193	50-220
	Width of bed way	mm	550	550	550
	Max.load capacity	T	3	3	3
Spindle	Spindle bore	mm	130	200	225
	Spindle speed steps	-	FWD. 18/REV. 9	VF.4 STEPS	VF.4 STEPS
	Spindle speed range	rpm	30-650	20-380	20-380
	Chuck size	mm	400	520	520
	Chuck type	-	3-jaw manual	4-jaw manual	4-jaw manual
Turret	Turret type	-	Manual 4 position	Manual 4 position	Manual 4 position
	Tool shank size	mm	30x30	32x32	32x32
Carriage	X axis feed grade/range	mm/r	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
	Z axis feed grade/range	mm/r	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
	X axis rapid traverse speed	mm/min	2300	2300	2300
	Z axis rapid traverse speed	mm/min	4000	4000	4000
	X axis travel	mm	320/420	320/420	320/420
	Z axis travel	mm	1350/2850	1350/2850	1350/2850
Tailstock	Tailstock quill diameter	mm	100	100	100
	Tailstock quill taper	-	MT#5	MT#5	MT#5
	Tailstock quill travel	mm	250	250	250
Motors	Main spindle motor	kW	11	11	11
	Rapid traverse motor	kW	0.3	0.3	0.3
	Coolant pump motor	kW	0.125	0.125	0.125
Thread	Metric thread grade/range	mm	52/1-24	52/1-24	52/1-24
	Inch thread grade/range	T.P.I.	40/2-28	40/2-28	40/2-28
Dimensions	Width x Height	mm	1500X1500	1500X1500	1650X1500
	Length	mm	3700/5200	3700/5200	3700/5200
Weight	Net weight	T	4.0/5.2	4.3/5.5	4.5/5.7
