2 4 6 8 Cavity Plastic Pet Bottle Blowing Moulding Machine

Product Description

Product Description

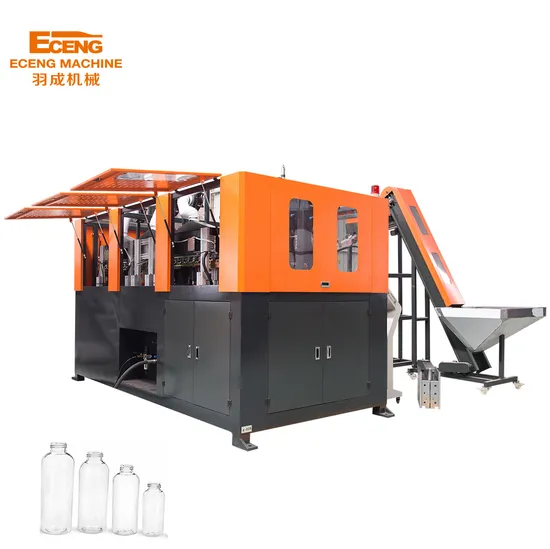

2 4 6 8 Cavity Full Automatic plstic Pet Bottle Blowing Moulding Machine Bottle Making Machine
model:Eceng Q6000
Features
Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .

Product Parameters

Item		Q6000
Bottle type specification	Cavity	4
	Theory output	5500-6500
	Max. volume	2L
	Bottle mouth maximum overall diameter	28-38mm
	Bottle biggest diameter	105mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1KW
	Maximum heating power	32KW
	All electric machine installation	42KW
	Actual consumption	25KW
Air pressure specification	Work pressure	7-9kg/c
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/c
	Higher -pressure gas consumption	3000Ltr/min
Frozen water specification	Work pressure	5-6 kg/c
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Frozen water flow	138L/min
Machine specification	Size of the machine	4.1x1.6x1.9
	Weight of the machine	3.9ton

Detailed Photos
1,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
2,New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
4,Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.

Company Profile
Eceng Machinery is a diversified conglomerate with a history of 17 years. Our company was founded in 2007 and is committed to providing a One-Stop Solution for All PET Packaging Needs.
Up to now, we have developed into a one-stop service provider that aggregates three factories. We have a blow molding machine factory, a packaging machine factory, and a mold factory. We provide turnkey projects for your bottled water/beverage juice/daily chemical packaging/carbonated beverage production lines and oil filling production lines.
With Customers
FAQ
Q: Is your company a trading company or a direct factory?
A: We are a direct factory located in Zhangjiagang City.
Q: Are all of your products made by yourselves or sourced from others?
A: We have an independent technical team that focuses on making machines; all the products are made by our technical team.
Q: What is the capacity of your factory?
A: About 200 lines per year.
Q: Do you offer any other services related to your products?
A: We have a lot of experience in creating projects and specifications for our clients; we also have a fixed service system.
Q: How do you provide quotations for clients?
A: The price depends on quality and performance, but the clients should be satisfied first.
After Sales Service
After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
After the commissioning, we will package the equipment by standard export package for shipment.
According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
SEE ECENG MACHINE HOW TO ENSURE THE QUALITY!
In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
Each component before assembly needs strictly control by inspecting personnel.
Each assembly is in charged by a master who has working experience for more than 5 years
After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
