TUV/CE/GS Certificates 10t Hydraulic Bottle Car Jack for Car Lift

Product Description

Product Description

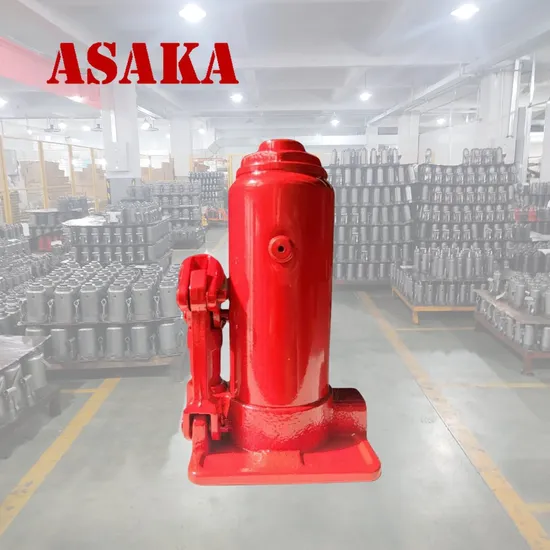

Bottle Jack Details & Function:
1. Easy for carry and widely used for car repair, workshop and outdoor, could help you a lot.2. Capacity could from 2T, 3T, 5T, 8T to 200T, could use for all kindly of Car and machine.3. Big loads easy to lift with high-quality.4. Heat-treated saddle, large size base make the jack safer.5. Factory tested for reliability and safety, Constructed of heavy duty steel.

Product Name	China Factory Supply ASAKA High Quality CE Certified Car Jack 2-200 Ton Hydraulic Bottle Jack
Raw Material	Metal alloy
Lifting Range	90-180mm
Weight	2-75kg
Color	Red/ Orange/ Blue/ Green/ Customized
Certifications	CE /ISO
Packaging	Color Box/ Carton/ Wooden Case
Use	Car Jack
OEM/ ODM	Customization Service Provided

Model	Lif.W (T)	Min.H (mm)	Lif.H (mm)	Adj.H (mm)	Max.H (mm)	N.W (kg)	Qty/Ctn (cm)	20' Cont. (pcs)	Measurement (cm)
BJ0202	2	158	90	60	308	2.23	10	7800	52x25.5x19
BJ0204	3-4	195	125	60	380	3.2	8	5400	46x26.5x22.5
BJ0206	5-6	197	125	60	382	4.1	6	4200	38x27.5x22.5
BJ0208	8	205	125	60	390	4.9	4	3340	29.5x27.5x22.5
BJ0210	10	205	125	60	390	5.6	4	3000	30.5x29.5x24
BJ0212	12	215	125	60	400	6.5	2	2500	30.5x16.5x24
BJ0216	15-16	225	140	60	425	7.8	2	2250	31.5x17x24.5
BJ0220	20	244	145	60	449	10.2	2	1500	34.5x19.5x27
BJ0225	25	244	145	/	389	10.2	2	1500	34.5x19.5x28
BJ0232A	30-32	285	180	/	465	13.5	2	1240	37.5x19.5x31
BJ0232A	30-32	285	180	/	465	14	2	1060	37.5x19.5x32
BJ0250	50	300	180	/	480	29.5	1	540	26x24x33
BJ02100	100	340	180	/	520	75	1	240	32.5x26.5x36

Direction for use:
1. Tighten the valve clockwise to ensure that the oil return valve can not be turned as far as it will go.
2. According to the height of the car body, select the height of screw out.
3. Insert the handle without groove into the end.
4. Place the jack near the tire of the car chassis ,and pull the handle up and down to reach the desired height.
5. After completion,loosen the valve one or two turns times anticlockwise,and press by gravity.
This jack does not have the function of automatic lowering.Remember that the oil return valve cannot be loosened too much,or the jack leaks oil.
Customized service support:

1.We can custom the color what you want. Only need you to provide the color number or we can supply the popular color for you choosing. 2.Package, manuals, certificates can be customized according to your requirement, meet your Individual requirements.
3.Red is our regular color, there are in stock. we can delivery fast when your quantities and models are same as ours. you can consult our sales team.
Samples Service
An India customer required a bottle jack sample to do test to check the quality, we help to calculate the freight, and sent to him
to check. He agreed. And paid the freight in advance.
After finished the production, we sent picture to customer for checking before we ship out, customer are satisfied with the sample, then we ship out the bottle jack by FEDEX, due to air express not allow the oil, so we poured the hydraulic oil, we already told customer in advance, he agreed, and said he can add oil locally.

About 7 days later, customer received the sample. And tested it, the feedback was excellent.
Certificate and inspection
ASAKA related certificate of bottle Jacks
Bottle jack sellers must conduct safety tests and obtain relevant safety certificates to ensure the safe use of bottle Jack. ASAKA bottle Jack In terms of product quality, we will strictly check each product to ensure that it absolutely meets safety standards.

ASAKA checks the performance of bottle jack
In order to make sure the load capability and stability of product, we will do static load test and dynamic load test for each order before shipping out.

In addition, we will also check the packing material , appearance, painting etc.

If you want to understand the process of inspection, we accept video call.
Packaging & Shipping
Packaging Details
64 ctn/pallet, 20 pallet/container
1300 pcs/container
The specific model packaging details are shown in the figure above:
Company Profile
ZHIXING MACHINERY CO.,LTD, specializes on professional lifting solution. The main products are manual chain block, lever block, webbing sling, hydralic jack, riggings, etc. We are located in Hangzhou City, Zhejiang Province China. With convenient transportation. All of our production comply with international quality standards. Every shipment we provide customers inspection report. Trust ZHIXING, your lifting solution starts here!

Why choose ASAKA?
1.Annual Production of Jacks over one million, exported to more than 100 countries. 2.The Factory area is 18,000 square meters.
3.The factory has passed ISO 9001 and BSCI.

4.The product complies with TUV/ GS/ ANSI/ ASME standards.

5.We have own R&D team.
6.Complete quality inspection system.
Customer Feedback
FAQ
Q1: Can you put my logo on product?
A1: We accept OEM
Q2: What is the min order quantity?
A2: Our MOQ is 200pcs for each capacity.
Q3: Are you factory or trade company?
A3: We are factory with over 20 years experience.
Q4: Do you have them in stock?
A4: Some of them in stock, but it depends on your requirement.
Q5: Do you have distributor/customer in our country?
A5: We exported our product to all over the world, so there are distributors/customers in most of country.
Q6: Do you have any certificate?
A6: Yes, we have CE certificate. we can send to you to check if you need.
Q7: What is the difference between with "safety valve" and "without safety valve" ?
A7: The one with safety valve can not lift higher when reach its rated capacity, so it will ensure the safety of user, the one without safety valve can lift higher when the stuff over jack's rated valve. It is a little bit dangerous. So the bottle jack with safety valve will more safe than the one without safety valve, but different countries have different requirement.

Contact us for more product information!
