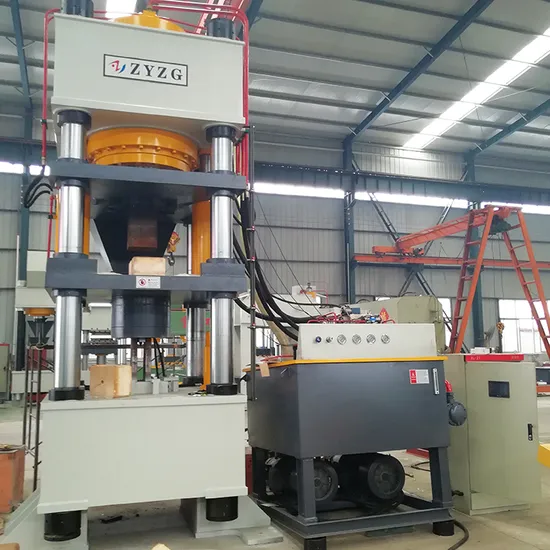

Salt Brick Hydraulic Press Mineral Block Briquetting Machine

Product Description

salt brick hydraulic press mineral block Briquetting machine
parameter of mineral block making press machine

parameter name	Unit	YQ32-63A	YQ32-63B	YQ32-100A	YQ32-100B	YQ32-160	YQ32-200A
Nominal force	KN	630	630	1000	1000	1600	2000
Hydraulic system maximum pressure	Mpa	25	25	25	25	25	25
Max opening height of the slide	mm	500	700	800	800	800	800
Max stroke of the slide	mm	360	400	500	500	500	400
Workbench effective area	mm	410×450	610×500	630×550	750×700	660×600	800×800
Ejector cylinder nominal force	KN	100	100	200	200	400	400
the stroke of the eject	mm	160	160	200	200	200	220
Slider speed	down mm/s	100	100	100	100	100	100
	press mm/s	5-10	5-10	5-10	5-15	5-10	5-10
	return mm/s	90	90	90	90	90	90

Performance characteristics of salt brick hydraulic press mineral block Briquetting machine :
The three-beam four-column structure is optimized, designed by computer, simple, economical and applicable. The hydraulic control system adopts the cartridge valve integrated system, which has reliable action, long service life and small hydraulic impact, which reduces the connection pipeline and leakage point.
Characteristic of salt mineral block machine:
500ton 10kg animal licking salt block hydraulic oil press machine parts details
Fine details of the design, improve the overall quality, so that our hydraulic 500ton 10kg hydraulic oil press machine have a better user experience.
Excellent technical experience as a support, long-term accumulation of experience, tireless, excellence, constant pursuit of innovation, continuous improvement, improvement, we believe that tomorrow will be better than today.
mineral brick making machine Usage:
20kg 23kg 25kg mineral block making Briquetting press machine is based on customer demand for cattle and sheep lick brick professionally customized into hydraulic machinery, the machine has a very good effect on the salt brick compression molding.Cattle and sheep licking bricks meet the nutritional needs of cattle and sheep husbandry, can better promote the growth of livestock husbandry. Cattle and lick lick brick hydraulic press with a four-post structure, equipped with a special powder and floating molding technology.
pressed product:
The salt Licking Block Press Machine is a series of animal husbandry products of hydraulic briquetting machine launched by our company. It is specially designed for the development of cattle and sheep livestock industry and is a professional production equipment for mineral nutrient salt blocks on the modern market.
Packaging and shipping of Sheep licks Mineral Salt Block Press machinery:
1. inner layer is made of plastic film rust-proof packaging,
2. the embossing machine outer layer is reinforced by reinforcing the synthetic board,
3. separate container can be used.
other as requirement
