Taijia JY-8SK Laser positioning rebar detectors for concrete rebar location tester rebar locator and cover meter

Product Description

Product Description

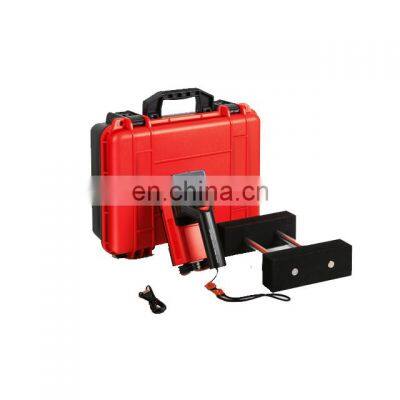

Product DescriptionJY-8SK Laser positioning steel bar scannerJY-8SK Laser positioning steel bar scanner is a hand-held nondestructive testing equipment. It can be used conveniently and can be used to test the internal reinforcement of concrete. It can accurately test the thickness of the concrete inner steel bar, the position, direction and distribution of the internal steel bar, and can test the diameter of the steel bar, and can test the diameter of the steel bar. Instrument development and production is according to the JGJ_T152-2008 concrete steel bar testing technical specification.Features * High resolution color LCD screen (2.8-inch, 320x240-pixel, 65536-color) * Integrated host, testing unit integrated with the host, no need for signal line * Built-in large-capacity lithium battery, the maximum working time can be up to 30 hours. * Laser indicating positioning, convenient to determine the position of steel bar. The laser beam attached to this instrument meets the safety standards and must not be directly viewed as a laser sourcePacking&Delivery1) Instrument hostx 1 Unit2) Chargerx 1 Unit3) Data transfer linex 1 Unit4) Software CD-ROMx 1 Unit5) Bluetooth receiver (optional)x 1 Unit6) Large capacity external power supply (optional)x 1 UnitRelated ProductBJLF-1 Concrete digital crack width gaugeCrack integrated detector is mainly used for crack width and crack depth measurement of bridges, tunnels, buildings, roads and soon.HT-225 Concrete test hammerHT-225 is applied to test the compressive strength of building concrete components, bridge and so on. HT-225 submit to standard ofGB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805.ZBL-R630A Rebar scannerZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation,and distribution of rebar by using an electromagnetic induction method. Contact UsDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China E-mail:info at TEL:86-411-86737519Mob.:86 15541112235WhatsApp/Wechat/Zalo:+86 15541112235Web:
