Efficient Plastic Pipe Machine for Manufacturing
| US$23,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-230T PET
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
84771090
Production Capacity
500sets Per Year
Product Description

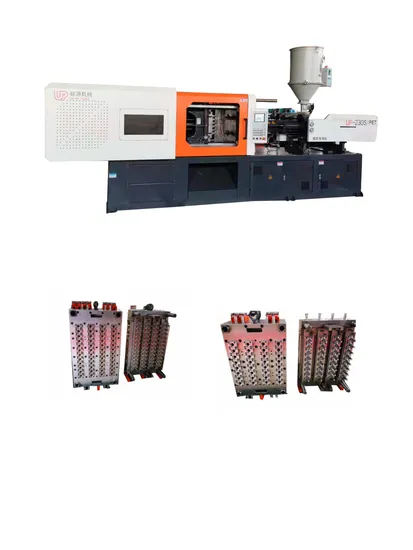

Product Description: 230T PET Injection Molding Machine
Introducing the 230T PET Injection Molding Machine from Ningbo Union Power Machinery Co., Ltd. This machine is specifically designed to cater to the unique plastic molding characteristics of PET, ensuring optimal performance and efficiency.
Special plasticizing module with a length-diameter ratio of 22:1 for enhanced plasticizing output and quality
Large injection weight capacity
Powerful power source configuration reducing overall cycle time
Plasticizing action can be synchronized with mold closing actions, reducing molding cycle time
Experience the precision and reliability of our PET preform injection molding machine, engineered to meet the demands of modern manufacturing processes.
| Technical Parameters | Model UP-230T PET | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 50 | 55 | 60 |
| Shot Volume (cm3) | 461 | 558 | 664 |
| Injection weight (g) | 553 | 669 | 796 |
| injection pressure (Mpa) | 169 | 142 | 121 |
| Screw speed (rmp) | 155 | ||
| Clamping Unit | |||
| Clamping force (KN) | 2300 | ||
| Open stroke (mm) | 475 | ||
| Max Mold height (mm) | 550 | ||
| Min Mold height (mm) | 220 | ||
| Space between tie bars(mm) | 530*530 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 135 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 22(21.2) | ||
| Heating power (KW) | 14.2 | ||
| Machine dimension (M) | 5.8*1.55*2.15 | ||
| Machine weight (T) | 6.3 | ||
| Oiltank cubage (L) | 350 | ||
