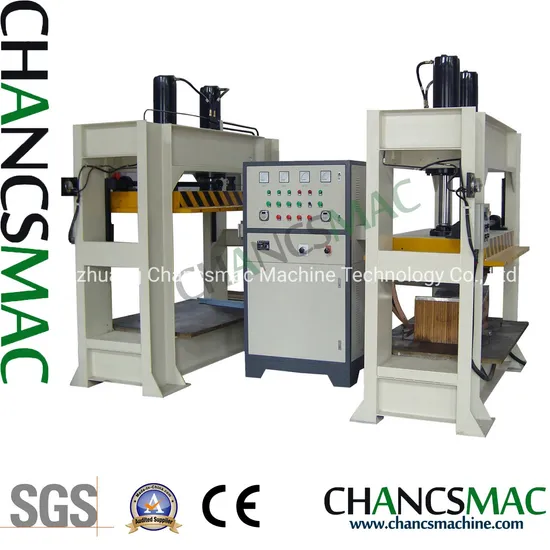

High Frequency Plywood Bending Press Machine Vertical Direction

Product Description

High-Frequency Plywood Bending Press HFPB-1206-CH
The machine running video: https://youtu.be/L-BHf69FqdY
1. Introduction:
High frequency plywood bending press can be used to produce a variety of plywood components in office furniture, school furniture, home furniture and children furniture, such as curved plywood chair seats and backs, sofa arm rest, TV stand, tea table, bed slats, baby bed, guitar rim, sound box etc. HF plywood bending press can also bend MDF and HDF into bed heads, cabinet door face, panel furniture etc.
2. Features:
1). High efficiency: High frequency is internal heating, drying glue quickly, easily and uniformly (Chair bending needs 2-3 mins per cycle)
2). Low costs: High frequency concentrates power on glue, saving energy.
3). Stable quality. After pressing, plywood shape is steady and hard to change.
4). Easy mold making. HF bending press works with plywood mold, which is easy to design and make in customers' requirement
5). Environment friendly: High frequency power needs only electricity, clean and dust free.
3. Specification:

Model	HFPB-1206-CH	HFPB-1508-CH	HFPB-1610-CH	HFPB-2010-CH	HFPB-2513-CH
Power	3 Phase 4 Wires AC 380V 50Hz or Customized
HF generator	20KW----50KW
Working table	1200x600mm	1500x800mm	1600x1000mm	2000x1000mm	2500x1300mm
Pressure	80T	100T	120T	120T	160T
Opening	1000mm----1400mm
Output	Two outputs
Weight	6T	7T	7.5T	9T	12T

4.Theory Show:

4.Mold show:
5.Packing & Shipping:
7.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
