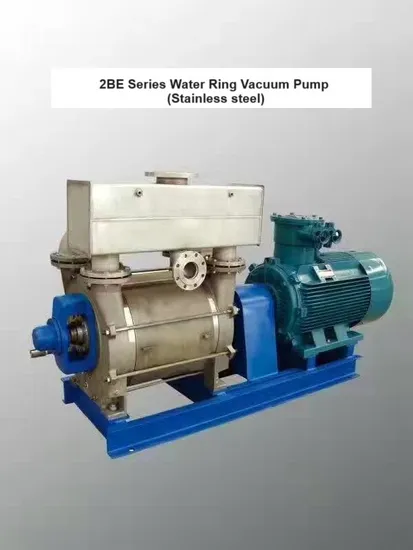

2be1 202 Water Ring Vacuum Pump for Chemical, Chemical Fertilizer, Paper and Pharmaceutical Industry From China

Product Description

Catalogue sheet for vacuum pump 2BE1 202
Liquid Ring Vacuum pump
Introducing the 2be1 202 Series China Pumps Liquid Water Ring Vacuum Pump - a top-of-the-line product designed to meet all your vacuum pumping needs. This high-quality vacuum pump is perfect for a wide range of applications, from industrial to commercial use.
With its advanced technology and superior performance, the 2be1 202 Series China Pumps Liquid Water Ring Vacuum Pump is the ideal choice for those seeking a reliable and efficient vacuum pump. Its powerful motor ensures maximum suction power, while its durable construction guarantees long-lasting performance.
This vacuum pump is designed to handle a variety of liquids and gases, making it a versatile tool for any industry. Its compact size and easy-to-use design make it a popular choice for those seeking a reliable and efficient vacuum pump.
So if you're looking for a top-quality vacuum pump that can handle all your pumping needs, look no further than the 2be1 202 Series China Pumps Liquid Water Ring Vacuum Pump. With its superior performance and advanced technology, this vacuum pump is sure to exceed your expectations.
Our company is specialized in different kinds of products. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we make our products with good quality at the reasonable price.

Main applications

2BE1 pumps are ideally suited for general industry applications and 2BE1-Pump
for higher demands of the process industry, including:
Reactions § VCM recovery § Explosive gas compression § Distillation § Evaporation § Filtration § Solvent recovery § Drying § Extrusion §
Main industries

Features and benefits Efficient CPI version § Large material variety § Inlet pressures until 33 mbar § Wide selection of shaft seal options § Large differential pressure capability § High hydro test pressure capability § Also with ATEX certification in Cat. 1 and 2

Performance curves •

Suction Capacity •

These performance curves are based on operating conditions with saturated air at a temperature of 20 °C (68 °F), operating water at a temperature of 15 °C (60 °F), and a discharge pressure of 1013 mbar (29.92 in Hg abs.) with a tolerance of + 10 %, acc. to PNEUROP 6612. Air ejectors of the series types 2BP9 are available for suction pressures which are less than 33 mbar. Further details on request.

Speed / rpm (min-1)	< 200	200 ... 600		> 600
1300	2.7	1.8		0.9
1170	2.5	1.67		0.83
1100	2.3	1.53		0.77
980	2.1	1.4		0.7
880	1.9	1.27		0.63
790	1.7	1.1		0.57

Tolerance + 20 % /

Part No.	Description	Material of construction -
		Cast iron	Cast iron - Stainless steel combination			Stainless steel
		B	M	N	P	H
		Order No.	Order No.	Order No.	Order No.	Order No.
1.01	Impeller	Spheroidal graphite cast iron ASTM A 536 Grade 60-40-18 2)	Stainless steel casting ASTMA ASME SA 351-CF10M 2)
1.02	Shaft	Stainless steel ASTM A 276 Type 420 2)				Stainless steel ASTM A 276 316Ti 2)
3.01 4.01	Port plates	Grey cast iron ASTM A 48 Class 30 B 2)		Stainless steel casting 1) ASTMA ASME SA 351-CF10M 2)
6.01	Casing	Grey cast iron ASTM A 48 Class 30 B 2)			Stainless steel 1) ASTM A 276 316Ti 2)
7.01 8.01	End shields	Grey cast iron ASTM A 48 Class 30 B 2)				Stainless steel casting 1) ASTMA ASME SA 351CF10M 2)
	Mechanical seal	Chromium steel casting/carbon/viton Chromguss/Kohle/Viton
	Manifold (F44 / F47)	Grey cast iron ASTM A 48 Class 30 B 2)				Stainless steel casting 1) ASTM A 743-CF-3MN 2)
	Liquid separator (F43)	Carbon steel ASTM A283 Grade C 2)				Stainless steel 1) ASTM A 276 316Ti 2)

Parts pickled and passivated. / Or comparable material. /

Scope of supply	Material of construction (Details on page 4 - Details			Weight
	Cast iron Cast iron - Stainless Stainless steel steel combinations			Ge- wicht appr. kg
Basic Design
Vacuum pump Shaft sealing optional: Stuffing box with internal sealant Stuffing box with external sealant supply Mechanical seal, single acting, with internal sealant supply Mechanical seal, double acting, with external sealant supply	2BE1 152-0BY4 2BE1 152-0BY3 2BE1 152-0BY8 2BE1 152-0BY5	2BE1 152-0Y4 2BE1 152-0Y3 2BE1 152-0Y8 2BE1 152-0Y5	2BE1 152-0HY4 2BE1 152-0HY3 2BE1 152-0HY8 2BE1 152-0HY5	175 175 175 175
	Order code *)	Order code *)	Order code *)	appr. kg
With mounted suction manifold With discharge-side mounted liquid separator With mounted discharge manifold Flange connection acc. to ANSI B16.5 With spray nozzle With cavitation proctection Increase of operating liquid Viton cord O-ring packing between casing, port plate and end shield Certified acc. to ATEX Category 1 Category 2	F44 F43 F47 F62 F41 F80 F64 F01 F93 F91	F44 F43 F47 F62 F41 F80 F64 F01 F93 F91	F44 F43 F47 F62 F41 F80 F64 F01 F93 F91	23 30 23
