Hydraulic Automatic Precision Grinder My250 China Surface Grinder Machine Price

Product Description

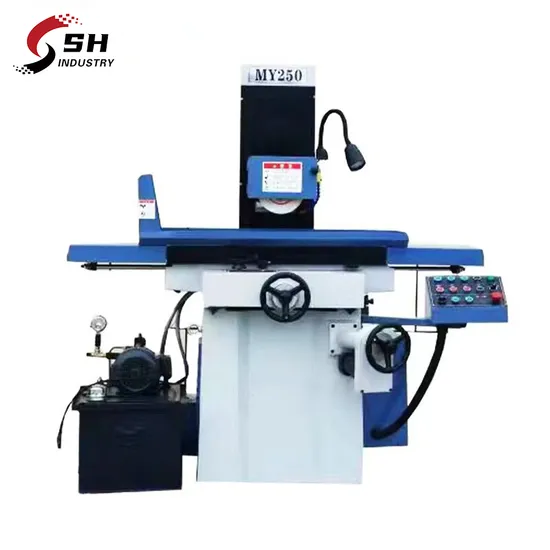

Hydraulic Automatic Precision Grinder MY250 China Surface Grinder Machine Price
Product Description
Characteristics:
1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.
2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.
4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:

Specifications				Units	MY250
workbench	Worktable size (L * W)			mm	500×250
	Max. Travel of table			mm	540×260
	Table T slot (slot number x slot width)			mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	ø200×18×ø31.75
	Distance spindle center line to working table			mm	490
	Grinding wheel speed		50HZ	r/min	2850
			60HZ	r/min	3360
The amount of feed	Table longitudinal (left and right) speed			m/min	3-20
	Table transverse (front and rear) feed handwheel feed		Continuous (stepless)	mm/min	150
			Intermittent (stepless)	mm/times	0-5
			Handwheel per turn	mm	5
			Handwheel per lattice	mm	0.02
	The vertical (up and down) feed handwheel feed		Handwheel per turn	mm	2
			Handwheel per lattice	mm	0.01
Hydraulic system	Hydraulic motor			kw	1.5
	working pressure			Mpa	2.5
	Fuel tank capacity			L	60
	Maximum flow rate			L/min	18
Motor power	Spindle motor			kw	1.5
	Cooling motor			W	40
working accuracy	The process surface of the base level of the parallel degree			mm	300:0.005
	Surface roughness			μm	Ra0.32
Machine weight		Net weight		kg	950
		Gross weight		kg	1150
External size (L * w * h)				mm	1750×1350×1960
Packing size (L * w * h)				mm	1630x1290x1940

Detailed Photos
