Automatic Exposure Machine Exposure Machine
| US$76,000.00-80,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
UVLED-A830
Usage
Semiconductor, Microelectronics, PCB Exposure
Type
Plate Exposure
Page
Double Faced
Automatic Grade
Semiautomatic
Product Type
Machine
Proximity Exposure
Vacuum Contact
Feature Size
2mil
Weight
1700kg
Power
AC380V
Maximum Machining Size
550*650mm
Minimum Machining Size
305*350mm
Transport Package
Standard Package, Wooden Package, Vacuum Package
Specification
L2400*W1550*H2170mm
Trademark
xinguanghui
Origin
Shenzhen
HS Code
8486309000
Production Capacity
500sets
Packaging & Delivery
Package Size
260.00cm * 175.00cm * 235.00cm
Package Gross Weight
1800.000kg
Product Description

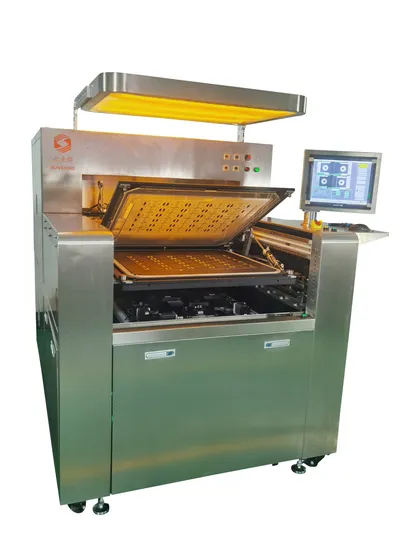

4CCDSingle resistance welding LED exposure machine Product Description
4CCDSingle resistance welding LED exposure machine
| product model | UVLED-A830 | ||
Production specifications | Baseline size | 305*350~550*650(mm) | |
| Baseline thickness | 0.1~3.2(mm) | ||
| intensity of light source | 500mw | ||
| Exposure way | Single-sided exposure | ||
| mesa structure | Glass VS industrial aluminum material | ||
| Light source system | Light source type | Mixed-band high-power UV LED | |
Counterpoint system | CCD quantity | 4pcs | |
| CCD Mobile way | Automatic movement | ||
| Contrast image examination | PCB board And the film after suction shrinkage check | ||
| plate fixed form | Plate double-groove vacuum adsorption | ||
| Mechanical repetition accuracy | ±12.5μm | ||
| Image read accuracy | ±5μm | ||
| productive power | Light resistance type | Welding | |
| Display the line resolution ability after the picture | 4mil*4mil | ||
| control system | operation interface | Large touch-screen operation interface | |
| Control hardware | Industrial PC + motion control card, high reliability and stability | ||
| complete set requirement | current source | 3 Phase AC380V 50Hz 15KW | |
| filter system | 5000Clss Efficient filter | ||
| Main material | SUS304 National standard plate | ||
| other | Machine size | L2400*W1550*H2170mm | |
| Machine weight | 1700KG | ||
