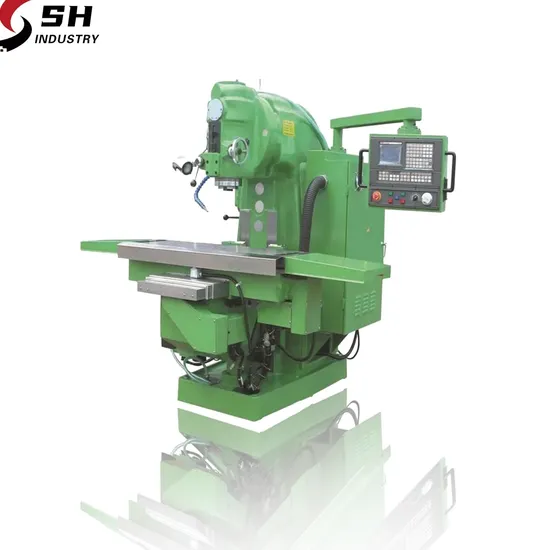

X5032 Lifting Table Knee Type Full Gear Vertical Milling Machine (Milling machinery)

Product Description

Product Description
X5032 Lifting Table Knee Type Full Gear Vertical Milling Machine (Milling machinery)
We are the most professional in making vertiacal milling machine
Product Parameters
This machine has the following features:
1.X seris vertical milling machine body adopts advanced cast iron, the high precision, long life after the artificial aging treatment
2.X seris vertical milling machine spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability.
3.X seris vertical milling machine X, Y to the control of the machine tool by box type, can achieve automatic feeding, Z to the use of motor automatic lift.
4.X seris vertical milling machine X, Y, Z three direction of the guide rail hardening, precision grinding. Plastic slide
After the motion precision and life and taste
5.Equipped with manual lubrication device can be used to guide screw and guide rail.
6.X seris vertical milling machine is a kind of common metal cutting tools. This tool spindle cone can be directly or through the attachment of cylindrical milling, installation, end milling cutters, Angle cutter knives, applicable to such processing various parts of the plane, cant, groove, holes etc, machinery manufacturing, mould, instrument and meter, automobile, motorcycle industries ideal processing equipment.
Scope of application:
Milling machine is a widely used machine tool, in the milling machine can be processed plane (horizontal plane, vertical plane), groove (keyway, T-groove, dovetail groove, etc.), split tooth parts (gear, spline shaft, sprocket), spiral surface (thread, spiral groove) and various surfaces. In addition, it can also be used for the surface of the rotary body, the inner hole processing and cutting work. When the milling machine is working, the workpiece is installed on the workbench or the indexing accessories, the milling cutter rotation is the main movement, supplemented by the feed movement of the workbench or the milling head, the workpiece can obtain the required machining surface. Because of the multi-edge intermittent cutting, the productivity of the milling machine is higher. Simply put, a milling machine is a machine that can mill, drill and boring the workpiece. Suitable for hardware accessories, mechanical parts, molds, automatic manipulators and other industries.

Main technical parameters	Specifications	Units	X5032
	Table size	mm	1325×320
	Table load	kg	500
	T slot(number-width-pitch)	mm	3-18-70
	Table travel	mm	700/680
			255/240
			370/350
	Range of table feed	mm/min	XY:23.5-1180
			Z:8-394
	Rapid speed of table	mm/min	XY:2300
			Z:770
	Spindle taper		ISO50 7:24
	Spindle speed range	rpm	30-1500 (18 steps)
	Swivel angle of vertical milling head	°	±45
	Distance between spindle nose and table surface	mm	45-415
	Spindle motor power	kw	7.5
	Feed motor power	kw	1.5
	Weight	kg	2900/3200
	Overall dimension	mm	2300×1770×2000

Realistic photos

Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
