PLC Control Electric Heating Water Cooling Lab Two Roll Open Mixing Mill

Product Description

Product Description
Product introduction
The double-roll open rubber mixing machine is referred to as the open rubber mixing machine, which is one of the basic equipment for rubber product processing.
The company can provide raw material mixers according to customer requirements to reduce labor intensity.Calendering is suitable for the manufacture of simple sheet and plate-like products.
It is to mix rubber mixing by calender pressed into a certain shape and size of film method is called rolling forming.
The uniform material can be fed into a calender, hot press or other processing machinery to make rubber or plastic products. The single output reducer adopts rolling bearing structure, and the roller can be a boring groove roller or a drilling groove roller.
Application program:
Plasticizing of raw glue; Compound mixing; Warm mixing of mixed glue and compound; Rubber material tablet; Remove impurities from compounds; Raw rubber grinding, cleaning; Recycled rubber crushing, mixing, pressing; Raw rubber sheet, etc. In addition, it is also widely used in plastic processing and paint pigment industry production.
This machine is used to mix raw rubber, synthetic rubber, thermoplastic or E.V.A. with chemicals to make it a uniform material.
Depending on the scope of application, it can be used for mixing, refining or pressing.Humanized design
Years of industry customization experience, rich research and development experience, intimate after-sales team to serve you!
Fine workmanship
The process is mature, the finished surface is smooth and flat, the precision is high, and the operation is smooth.
Strict quality inspection
Products are inspected before leaving the factory, multiple quality testing processes, low failure rate.
Factory supply
There is no middleman to earn the difference, directly to the customer, to give you a real discount.
Product Parameters
Consult other prices and models please feel free to contact customer service for quotation.

Model ltem	XY-2Φ252*720	XY-2Φ360*1120	XY-2Φ450*1500	XY-2Φ550*1830	XY-2Φ610*1730	XY-2Φ710*2130	XY-2Φ810*2430
(m/min) Linear speed of front rollers	1.2~12	3~20.2	2.5-26	3-30	5.4~54	8-50	4~40
Speed ratio of front and rear roller	1:1	1:1	1:1	1:1	1:1	1:1	1:1
(mm) Max product width	580	920	1250	1600	1500	1850	2150
(mm) Min product thickness	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor power(kw)	15	37	45	75	90	110	160
(mm) Overall size L*W*H	3950*1110*1590	5400*1542*1681	7013*1595*2446	7200*1760*2760	5987*1860*2988	8150*3760*3630	8690*3139*4270
(T) Weight	-5	-11.5	-14	-24	-30	-49	-62

Model ltem	XY-3Φ252*720	XY-3Φ360*1120	XY-3Φ450*1500	XY-3Φ550*1500	XY-3Φ610*1730	XY-3Φ710*2130	XY-3Φ810*2430
(m/min) Linear speed of front rollers	1.2-12	3~20.2	2.5-26	3~30	5.4~54	8-50	4-40
Speed ratio of front and rear roller	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
(mm) Max product width	580	920	1250	1300	1500	1850	2150
(mm) Min product thickness	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor power(kw)	22	45	75	110	160	185	132KW*3
(mm) Overall size L*W*H	3950*1720*1210	6500*1500*2440	7320*2200*2900	7550*2400*3800	7010*3950*3730	7650*4560*4080	11400*3200*5050
(T) Weight	-5.5	-14	-21	-35	-42	-67	-110

Model Item	XY-4Φ230*630	XY-4Φ360*1120	XY-4Φ400*1200	XY-4Φ450*1400	XY-4Φ610*1730	XY-4Φ700*1730	XY-4Φ710*2130	XY-4Φ800*2500	XY-4Φ860*2500
(mm) Working diameter of rollers	230	360	400	450	610	700	710	800	860
(mm) Working length of rollers	630	1120	1200	1400	1730	1850	2130	2500	2500
Speed ratio of front and rear roller	1:01:01	0.73:1:1:0.73	1:1.38:1.38:1	1:1.5:1.5:1	1:1.4:1.4:11:1.4:1.4:1.4	0.5-1 Adjustable	1:1.5:1.5:1	0.5-1 Adjustable	0.5-1 Adjustable
(m/min) Middle-roll linear speed	2.1-21	2-20.1	3-26.3	2.5-25	8-50	4-40	3-30	4-40	4-40
(mm) Adjusting nip range	0-10	0-10	0-10	0-10	20	0-30	0-20	0-30	0-30
(mm) Min product thickness	0.2	0.2	0.2	0.2	0.15	0.2	0.15	0.2	0.2
(mm) Production calendaring width	500	920	1200	1250	1500	1600	1900	2200	2200
(kw) Motor power	15	55	75	110	185	90KW*2110KW*2	220	132KW*4	160KW*4
(mm) Overall size L*W*H	3800*390*1890	3300*940*2350	6400*1620*2490	6500*1970*2740	6580*2460*2920	9950*3600*4870	7010*4150*3730	10400*3900*5140	12000*3800*5850
(T) Weight	-4.8	-16	-20	-23	-50	-110	-100	-130	-180

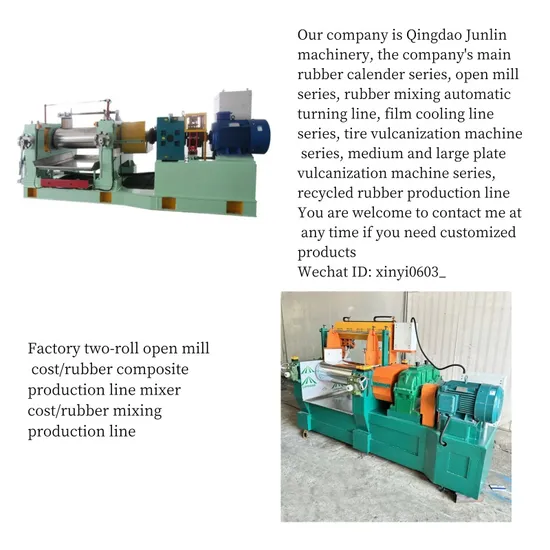

Detailed Photos
Strength factory field equipment direct shooting
Certifications
Company Profile
Qingdao Junlin Rubber Machinery Co., Ltd. is a rubber machinery technology enterprise integrating research and development, production and sales, with advanced machining equipment and precision testing instruments. Located in Huangdao District, Qingdao City, Shandong Province, 53 kilometers from Qingdao Jiaodong International Airport and 25 kilometers from Qingdao Port, the geographical position is superior.
The company has a series of advanced mechanical processing equipment, relying on quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Qingdao Junlin Machinery Co., Ltd. has established a stable business relationship with many customers at home and abroad, and gradually set up an image in similar factories.
Our main products are: open mill series, automatic rubber mixing device series, rubber calender series, rubber plate cooling line series, plate vulcanization machine series, recycled rubber equipment series, rubber powder production equipment series. The company has been identified as a high-tech enterprise, specializing in special new enterprises, the company has passed iso9001:2015 quality management system certification, has a number of utility model patents and software Copyrights.
The company has passed iso and CE certification, products are sold all over the world, but also exported to the United States, Russia, Thailand, Egypt, Brazil, India, Sri Lanka, Nigeria, Chile and other more than 70 countries.
Factory strength demonstration
The company has a variety of products to meet different needs; Advanced technology to ensure high efficiency, stability and continuous innovation; Quality assurance, strict control and durable and reliable; Thoughtful service, pre-sales customized solutions, after-sales installation and debugging; Wide market coverage, good reputation.
Our Advantages
1. The main operation adopts the touch operation interface, intuitive and easy to operate.
2. The main machine adopts two motors to control two rollers respectively, with stable power and smooth rotation.
3. The electrical part adopts Germany Siemens, stable operation.
4. In sheet production, automatic sequence control is adopted, the front and back spacing is mainly limited to 5 hosts, and both sides of the winding and winding mechanism are respectively used for coil production.
5. Equipped with American imported hydraulic cylinder, precision hydraulic station, large pressure adjustment range, pressure stability.
6. Equipped with receiving and discharging EPC deviation correction device, so that the material entering the host and discharging, do not offset on the same reference line.
7. The main machine roller is made of special steel forging and finishing, with strong hardness and pressure resistance.
8. The machine can meet a variety of process production methods, equipped with a variety of rolling schemes, to meet the different shipping requirements of customers.
FAQ
Q1: Where is your factory located?
Qingdao Junlin Machinery Co., Ltd. is located in No.9 Tangdao Wan Road, Huangdao District, Qingdao City, China
Q2: Are you an integrated supplier of rubber machinery?
Yes, we can provide complete solutions according to customer requirements.
Q3: How about quality control in your factory?
Our company has SOP(Standard Operating Procedure), and all production steps must be carried out in accordance with SOP. Each machine must operate automatically for at least 72 hours and must be carefully checked before shipment.
Q4: Do you offer pre-sales service?
Yes, we have an experienced pre-sales team to provide customers with machine, technical, water, electrical, plant machine layout and other support.
Q5: How is the after-sales work? Can you send engineers to our country to help debug and install machines?
Yes, of course. We have many experienced overseas service engineers. They will help you install the machines and train the workers.
Q6: When is the delivery time of the machine?
In fact, the delivery time of the machine depends on the choice of machine. Under normal circumstances, the delivery time of standard machines can be within 30-45 days
Q6: What is the warranty period of this machine?
The warranty period of the whole machine is 12 months, and the key parts are guaranteed.
Q7: Do you provide spare parts for the machine?
Yes, our company will provide a set of standard spare parts to customers according to different machines.
