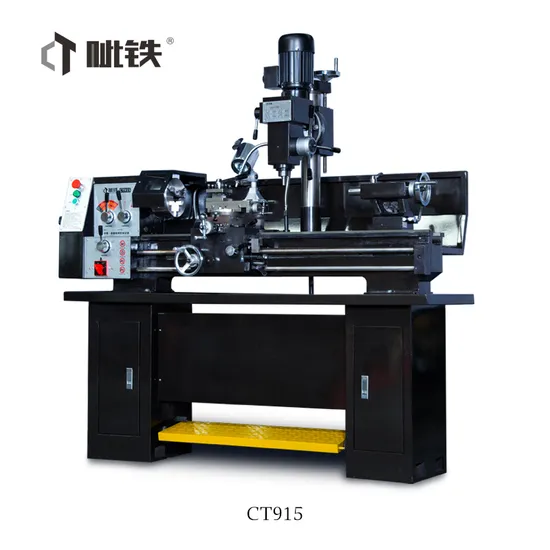

2021 Sell Hot 3 in 1 Mini Lathe Mill Drill Combo Lathe and Milling Machine Metal Working Multi Purpose Lathe Machine CT915
Basic Info.
Model NO.
CT915
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-Tool Holder Manual Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Feature
High Precision
Produce Capacity
1000
HS
8458190000
MOQ
1
Transport Package
Standard Wooden Packing
Specification
1620*650*900mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Packaging & Delivery
Package Size
173.00cm * 77.00cm * 115.00cm
Package Gross Weight
500.000kg
Product Description
| Turning-parameters | |
| Max. swing over bed | 320mm |
| Max. swing in gap | 210mm |
| Max.machining length | 915mm |
| Middle carriage travel | 200mm |
| Spindle taper | MT5 |
| Spindle bore | 38mm |
| Max. travel of tail-stock sleeve | 80mm |
| Taper of tail-stock | MT3 |
| Threads metric pitches | 0.5~4mm 15 kinds |
| Threads inch pitches | 9~48T.P.I 23 kinds |
| Transverse feed | 0.10~1.50mm/r |
| Longitudinal feed | 0.025~0.34mm/r |
| Spindle speed range | 60~1600r/mim |
| Motor power | 1500W /50HZ |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 20mm |
| Spindle taper | MT3 |
| Spindle speeds | 200~2200r/mim 4 kinds |
| Motor power | 550W / 50HZ |
| Net weight/gross weight | 475/500kg |
| Overall dimensions | 1620*650*900mm |
| Package Size | 1730*770*1150mm |
