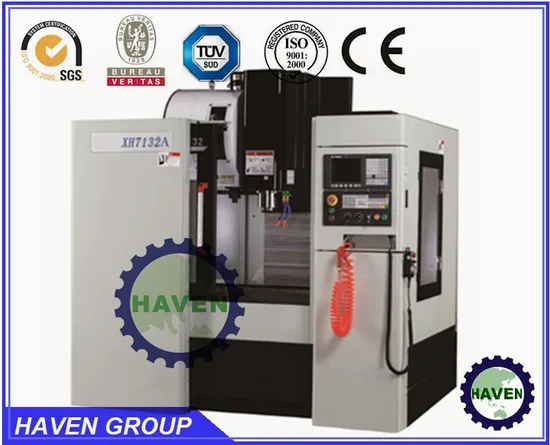

XH714 Haven Brand High quanlity vertical machine center, CNC milling machine

XH714 Haven Brand High quanlity vertical machine center, CNC milling machine

US$5,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XH714
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
worktable travel
650X400X500mm
worktable size
900X400mm
Transport Package
Veneer Case
Specification
XH714
Trademark
HAVEN
Origin
China
HS Code
8455
Production Capacity
100PCS/Month

Product Description


XH714 Haven Brand High quanlity vertical machine center
XH714 Haven Brand High quanlity vertical machine center, CNC milling machine
WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige
specification unit XH714 XK714
Table travel (X,Y,Z) mm 650x400x500 650x400x500mm
Table size mm 900x400 900x400
Number/width/distance of T-slot 3-18-130 3-18-130
Max load of table kgs 400 400
Distance from spindle nose to table surface mm 120-620 120-620
Distance from spindle axis to column guideway mm 510 510
Rapid feed speed m/min 18 18
Feed speed mm/min 2.5-4000 2.5-4000
Taper of spindle BT40 BT40
Spindle speed range rpm 40-6000 60-6000
Spindle motor power kw Servo motor: 3.7; frequency conversion:5.5;
Tool magazine capabilitu qty 16
Max weight of tool kgs 8
Max dimension of tool mm Dia 120x200
Positioning accuracy mm +-0.015 +-0.02
Repeat positioning accuracy mm +-0.0075 0.01
Min.time of tool change sec 7
Overall dimension mm 2120x2150x2290 2120x2150x2290
Machine weight kgs 3300 3200
