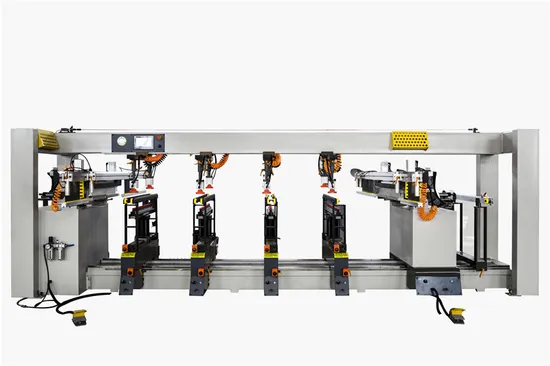

Woodworking Drilling Machine with Multiple Row
| US$3,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MZ73216
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Diamenter of Holes
35mm
Depth of Drilled Holes
0-60mm
The Number of Spindles
21*6
Center Distance Between Spindles
32mm
Rotation of Spindle
2840r/Min
Total Motor Power
9kw
Air Pressure
0.5-0.8MPa
Weight
1200kg
Transport Package
Wooden Case
Specification
10.8CBM
Trademark
QDZD
Origin
Qingdao
HS Code
84659500
Production Capacity
500sets/Year
Product Description
woodworking drilling machine with multiple rowTechnical Specification:
| Max. diameter of holes | 35 mm |
| Depth of drilled holes | 0-60 mm |
| Rotation of spindle | 2840 r/min |
| Total motor size | 9 kw |
| Air pressure | 0.5-0.8 Mpa |
| number of spindle | 21*6line |
| weight | 1200kg |
Product Details:
Our Services: (1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
