Electric Pallet Truck Lithium 24 V 15 Ah, Load Capacity 1500 Kg Pallet Truck Parts

Product Description

Product Description

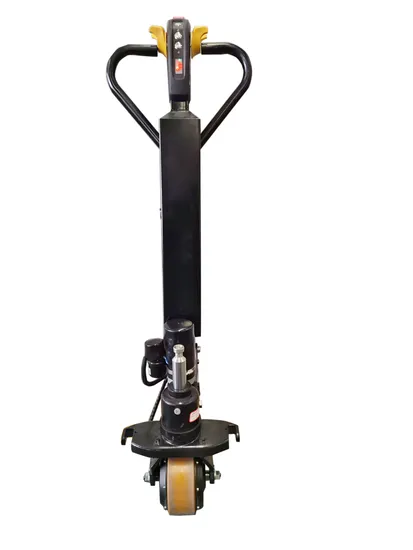

The power handle kit is a retrofit module that integrates a driving motor, wheel, accelerator, controller, cylinder, lithium battery, and harness assembly. It is designed to effortlessly convert an old manual pallet truck into an fully electric power pallet truck within minutes, all at a low cost.
What are the advantages? Compact design with small size and light weight Lithium battery, large capacity, fast charging Multifunctional handle with turtle speed function and battery display Easy maintenance: module assembly easy for maintenance and replacement Installed with integrated power handle kit, can be disassemble for replacement and maintenance easily In-Wheel-Motor with high performance and adaptability for different kind and size of old pallet trucks Customization available: custom-made connection section is available for modification of special hand pallet trucks. Product Specification Parameters

Brand	AIDA	Unit
Model	XD-5301
Power	Electric
Operation way	Walkie electric moving and electric lifting/lowering
Load capacity	2000	kg
load centre distance	600	mm
Self weight	42	kg
Max.ground clearance	200	mm
speed,loaded/unladen	4.8/5.2	km/h
Gradeability,loaded/unladen	3/7	%
Motor	0.8	kW
Battery	Li-on 48V 15Ah	V/Ah

How to use? (1) Measure dimensions as below to make sure compatible with the Power handle kit
(2)Disassemble the the manual handle rod from fork frame of the old manual pallet truck, keep the original fork frame
(3) Assemble the the Power handle kit to the original fork frame
AIDA is a high-tech enterprise integrating R&D, production and service, as a solution provider of professional material
handling equipment and flexible intralogistics system for all scenarios.
Offer products including series of electric pallet truck, electric stacker and a series of hand pallet truck, semi electric
stacker and reach stacker and other material handling equipment. Widely used in logistics and warehousing, retail
and wholesale, medicine, food, chemical, electronics, machinery, automobile and other industries.
AIDA have established a strict quality assurance system and have passed ISO9001,ISO14001,SGS,and CE certification.
It is a national high-tech enterprise with more than 40 national patents, which has been rated as "Small giant enterprise in
Hunan Province", "The first batch of pilot enterprises for the integration of advanced manufacturing and modern service
industries in Hunan Province","Demonstration enterprise of intelligent manufacturing in Changsha City"," Hunan Enterprise
Technology Center".
"Energy saving, environmental protection, high efficiency and intelligence" is the design concept of AIDA products, and it is
committed to becoming a smart digital expert for intralogistics.
FAQ
