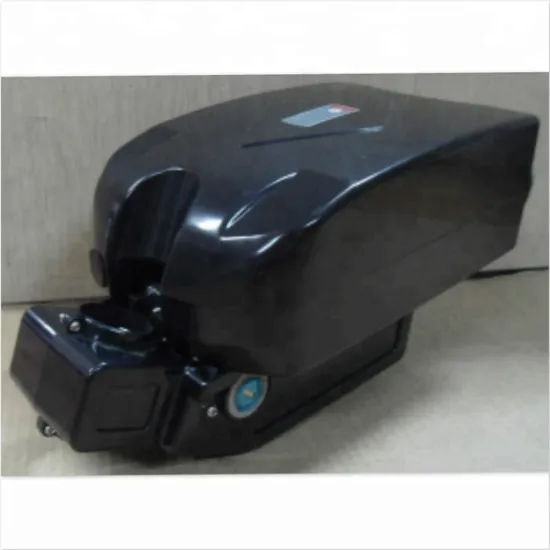

Small Frog Li-ion Battery 24V 5ah for E-Bike/Motorcycle Battery

Product Description

Small Frog Li-ion battery 36V 10ah for e-bike/motorcycle battery

Product specifica t ion

Cell	model		GLM5Ah-7268124
	Capacity(0.5C)		≥5Ah
	rated voltage(V)		3.7V
	Typical Impedance (mΩ)		≤12mΩ
	Battery material		NMC cathode material
PACK	Combination method		2P7S
	Minimal capacity(0.5C)		10Ah
	Nominal voltage		24V
	Max. charge voltage		29.4V
	Discharge cut-off voltage		≤21V
	Max Charge current		5A
	Max Working current		15A
	Standard charge current		0.2C
	Standard charge current		0.5C
	Pack Impedance standard		≤100mΩ
	Weight (Approx.)		2.5Kg
	Max. dimension(L×W×H)(mm)		90*150*255
	Operating temperature	Charge temperature	0ºC~45ºC
		Discharge temperature	-10ºC~55ºC
BMS	Single cell over-charge cut-off voltage		4.2V
	over-charge release voltage		4.1V
	Single cell under-discharge cut-off voltage		2.75V
	Discharge release voltage		3.0V
	Over-discharge cut-off current		52A
	Over-discharge cut-off current delay		1.5S
	Short-circuit protection		150A
	Short-circuit protection delay		500uS
	Condition for the recovery of over-current and Short-circuit
	Balance current		40-50mA
	Balance Condition		4.175

Caution:
1.Do not dismantle, open or shred the batteries.
2.Do not expose batteries to heat or fire. Avoid storage in direct sun light.
3 .Do not short-circuit the battery,Do not store batteries haphazardly in a box or drawer where they may be short-circuited by other metal objects.
4 Forbid confusedly using the charge socket and discharge socket, or accidents may occurred.
5.Do not subject batteries to mechanical shock.
6.In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
7.Observe the plus (+) and minus (-) marks on the battery and equipment and ensure correct use.
8.Keep batteries out of the reach of children.
9.Keep batteries clean and dry.
10.Wipe the battery terminal s with a clean dry cloth if they become dirty.
11 .Batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
12.Do not leave a battery on prolonged charge when not in use.
13 .After extended periods of storage, it is necessary to charge and discharge the batteries several times to obtain maximum performance.
14 .The batteries give their best performance when they are operated at normal room temperature (20 °C ± 5 °C).
15.Retain the original product literature for future reference.
16.Use only the battery in the application for which it was intended.
17 When possible, remove the battery from the equipment when not in use.
18. Dispose of properly.
19. Cells used as E-motor or storage power should be matched with controller or related equipment..Because the battery piles are matched with protection board,you can not drive the pure inductance equipment otherwise you could damage the whole system.
