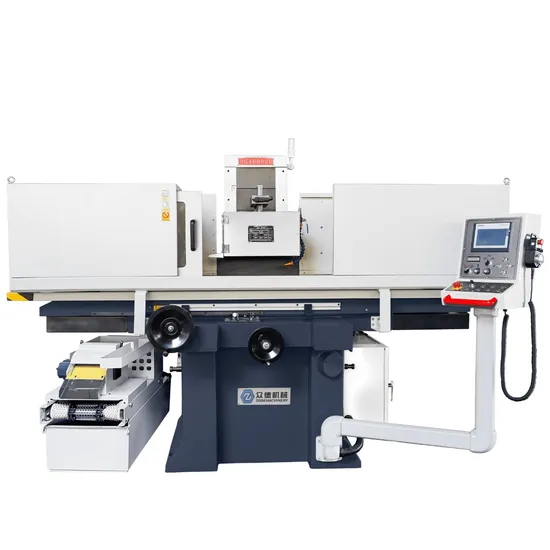

400*1000mm Sg40100SD High Precision Hydraulic Automatic Surface Grinding Grinder Machine

400*1000mm Sg40100SD High Precision Hydraulic Automatic Surface Grinding Grinder Machine

US$10,000.00-30,000.00 1 set (MOQ)

Basic Info.

Model NO.
SG40100SD
Type
Surface Grinding Machine
Processing Object
Metal, Ceramics Flat Surface
Abrasives
Grinding Wheel
Controlling Mode
PLC Control
Automatic Grade
Automatic
Cylindrical Grinder Type
Metal, Ceramics Flat Surface
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
400*1000mm
Floor Space
3600*2600mm
Total Power
9kw
Spindle Speed
1440rpm
Vertical Motor
Siemens Servo Motor
Cross Feed Motor
Siemens Servo Motor
PLC Brand
Siemens PLC
Spindle Motor
ABB/Siemens
Spindle Bearing
NSK P4 Grade
Hydraulic Brand
Taiwan Brand
Main Electrics
Schneiders Electrics
Cross Feed and Vertical Screw
P4 Grade Ball Screw
Buttons
Stainless Steel Button
Signal Lamp
LED Tri-Color Light
Chuck
Electric Magnetic Chuck(Fine Pole)
Transport Package
Wooden Case
Specification
5800*2250*2200mm
Trademark
ZODE
Origin
China
HS Code
8460191000
Production Capacity
100/Year

Product Description


1. Pictures
2. Parameters
Parameters Unit SG40100S SG40100SD
Working Surface of Table mm 400×1000 (16"×40") 400×1000 (16"×40")
Max.Table Travel mm 1050 1050
Max.Cross Travel mm 440 440
Distance Between Table Surface and Spindle Center mm 580 580
Max.Table Load kgs 700 700
T-Solt(Number×Width) mm 3×14 3×14
Table Speed m/min 5~25 5~25
Crossfeed Handwheel 1gard mm 0.02 0.02
1 rev 5 5
Automatic Crossfeed of Saddle mm 0.01~12 0.01~12
Automatic Crossfeed Rate mm/min 10~800 10~800
Power Cross Feed mm/min 1500 1500
Grinding Wheel Dimensions mm 355×40×127 355×40×127
Spindle Speed 50HZ rpm 1450 1450
60HZ 1740 1740
Vertical Handwheel 1gard mm 0.001 0.001
1 rev 0.5 0.1
Automatic Down Feed Rate mm 0.002/0.004/0.006/0.012/0.02/0.03/0.04/0.05 0.001~0.1
Power Head Increment mm/min 400 1000
Spindle Motor kw 5.5 5.5
Floor Space mm 3600×2600 3600×2600
Packing Dimensions mm 2990×2225×2195 2990×2225×2195
Net Weight kgs 3150 3150
Gross Weight kgs 3450 3450

3. Standard Accessories
1 Grinding wheel 2 Wheel flange
3 Wheel balancing base 4 Wheel balancing arbor
5 Extractor 6 Diamond dresser
7 Leveling pad 8 Anchor bolt
9 Tool box with tools 10 Electric chuck

4. Feature SD stands for high configuration program control, three-axis automatic, longitudinal hydraulic drive,cross feed and vertical axes are driven by servo motors, and equipped with touch screen to set parameters(Automatic down feed, the minimum down feed is 0.001mm, and has the functions of rough grinding, fine grinding, automatic lifting and spark out grinding).
[hydraulic automatic longitudinal feed, electronic automatic cross feed(use servo motor),incremental auto down feed (use servo motor)]
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system
ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and
trouble-shooting easily accessible
9. Safety 24V control circuit power
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main Configuration of Grinding Machine
1. Spindle motor: Use ABB brand which from Sweden.
2. Spindle bearing: Use NSK brand P4 grade precision ball bearing which from Japan.
3. Cross screw: Use P5 grade precision ball screw.
4. Main electrical components: Use S C H N E I D E R brand.
5. Main hydraulic components: Use brand from TAIWAN.
6. Cross feed and down feed servo motor: Use SIEMENS brand.
5. Company & Factory
Nantong ZODE Machinery Manufacturing Co., Ltd. is a manufacturer engaged in the research and development, production, sales and service of CNC grinding machine equipment. The company adheres to the advanced production technology and technology in cooperation with Germany, and is committed to building a domestic high-quality grinding machine manufacturer. The company has an excellent R&D team, which serves precision grinding and can provide low-cost and high-efficiency solutions according to the actual grinding requirements of customers.
ZODE Machinery has a huge distribution channel, and its products are sold all over the world. With "quality is the foundation, service is the foundation", it has won the trust and cooperation of global customers.
In the future,ZODE people will continue to devote themselves to professional grinding solution providers and work together with partners to meet the ever-changing new challenges.
6. Delivery Picture
7. FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10~20 days if the goods are in stock.Or it is 30~60 days if the goods aer not in stock,according to your quantity.
Q: Do you provide samples?is it free or extra?
A: Yes,we could offer the sample,but need extra cost.
Q: What is your terms or payment?
A: 30% T/T in advance,balance before shippment.
