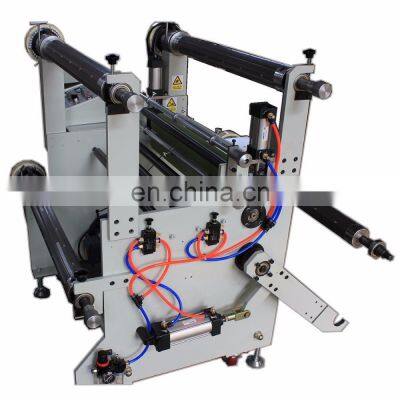

Adhesive tape OPP PP PE PVC film paper cloth laminating machine Descriptions :1.Magnetic powder control the unwind and rewind tension.2.Frequency conversion is used for speed regulation of the main motor.3.The cylinder control the rubber roller up and down.4.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.5.Optional:1.Photoelectric tracking system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements. Application :Used for laminating industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PP, PE, PVC, paper, cloth.etc. Main technical data:ModelDP-650Max Feeding Width ( mm)650Unwinding Diameter ( mm )400Rewinding Diameter(mm)450Precision±0.3mmTotal power1.5kwInner Paper Core Diameter 3 inchVoltage220V 50HZ Configuration:Unwinding shaft : 3 inch inflatable shaft 3 pcsRewinding shaft : 3 inch inflatable shaft 1 pcsMagnetic brakes : 3 set Magnetic clutch : 1 set Laminating motor: 1set Laminating roller : 2 (PU material)Air cylinder : 2 pcs
