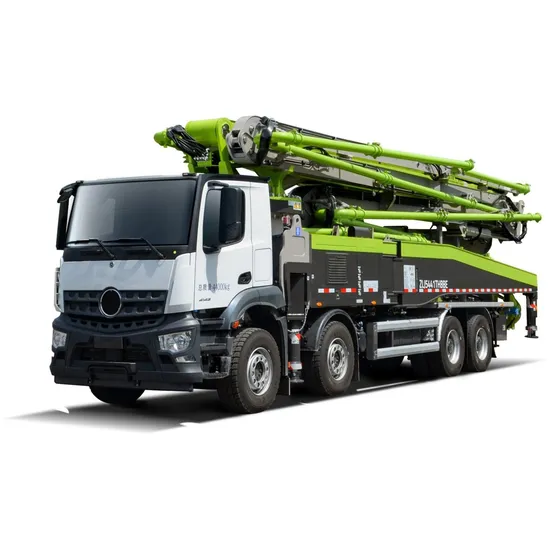

China Zoomlion 56m Zlj5441thb 56X-6rz Hydraulic Model Concrete Pump Truck

Product Description

ZOOMLION Concrete Pump Truck ZLJ5339THB 49X-5rz Hydraulic 49M PUMP TRUCK


Advavtages:
* Active boom vibration control technology(ABC):All-position active vibration reduction technology of boom, reducing vibration by 50%. More stable boom, more safety.
* Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.
* Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
* Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
* Dual-pump and dual-loop hydraulic system: Less hydraulic impact, High efficiency, Low failure rate.
* Three-stage fault diagnosis: boot self-check, process self-chec and shutdown detection is adopted to realize the overall control of the product's health condition.

* Long life wearing parts: Reduce working cost remarkably. Continuously improve wearing part's life by using new material, new process and new designing.

* Compact in design, 56m pump mounted on 4-axles truck.
* Efficient pump unit, ideal for long time use.
* Agile placing boom with 6 arms with unfolding height 15.8m only, which gives a wide work range.
* Proportional radio controls with two speeds boom movement, automatic frequency scanner.
* Double thickness concrete pipes hardened.
* Centralized lubrication system for pumping unit.
* Hard carbide wear plate and cutting ring for PU pumping units.
* Fiberglass hopper covering.
* Use & Maintenance Manuals.
* Spare parts and service Manual.

Optional:
1.Chassis brand: Merce-des-Ben-z, Sca-nia, Sino-truk, FA-W ect.
2.Other configuration on demand.
Product Parameters

Pump Unit	Maximum theorical output	m3/h	180
	Maximum pressure on concrete	bar	113
	Conc. cylinders (diam. x stroke)	mm	260x2100
	Concrete hopper capacity	L	600
	Hydraulic circuit		closed
Boom Section	Maximum vertical reach	m	56
	Maximum horizontal distance	m	51
	Minimum unfolding height	m	15.8
	Section numbers		6
	Rotating angle		±270°
	End hose lenght	m	3
