Factory Price High Quality Clean Room Conductive Perfortaed Raised Access PVC/HPL Aluminum Plastic Composite Anti-Static Floor Flooring

Product Description

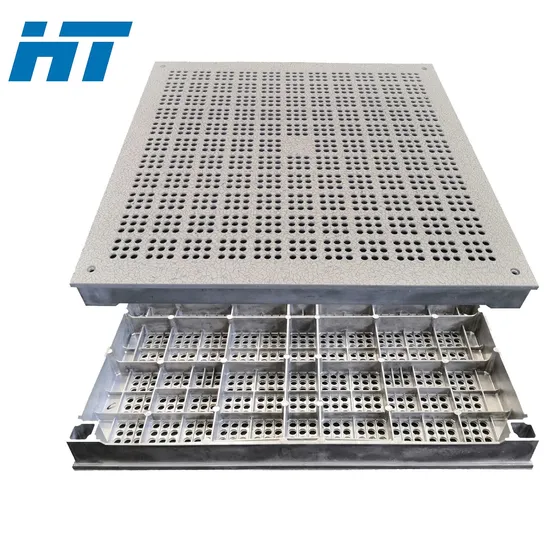

ALUMINUM ACCESS FLOOR
The raised access floor system HUATENG is the ideal product for nearly all applications with its excellent technical and building-physical characteristics. HT Die-cast Aluminum panel is used in severely demanded work places. The grid structure of the blind panel can disperse the weight of mechanism equipments effectively. The substructure consists of heightadjustable aluminum pedestals from our own production which form the necessary cavity for installations.
Product Description Huateng Aluminum Blind Panel is for areas where extremely heavy loads are to be placed. The uique lattice structure of these solid panels enables weight to be distributed in an optimum way so as to support heavy equipments. The precision afforded by each panel allows for excellent accessibility and inter-changeability when needed-yet they are durable and strong enough to withstand then concentrated loads found in semiconductor cleanrooms and other manufacturing environments.
Aluminum Access Floor is a raised floor system for commercial and industrial spaces. It consists of aluminum panels supported by a grid structure at the base, forming a raised surface above the existing floor. The system provides space for wiring, cables and other utilities, making it easier to manage and access these components. Aluminum load-bearing floors are commonly used in data centers, server rooms, control rooms, and other environments where effective cable management and ventilation are required.
Product Parameters

Type	Specification	Kinds	Size	Concentrated load		Ultimate load		Rolling Beam Deflection
HT-6101	DCA300	Blind	600*600*32mm	683LB.F	310KG.F	1993LB.F	904KG.F	0.015mm
HT-6102	DCA500		600*600*52mm	1488LB.F	675KG.F	3170LB.F	1438KG.F	0.013mm
HT-6103	DCA700		600*600*52mm	1962LB.F	890KG.F	4916LB.F	2230KG.F	0.016mm
HT-6104	DCA1000		600*600*52mm	2535LB.F	1150KG.F	5401LB.F	2450KG.F	0.014mm
HT-6105	DCA1200		600*600*52mm	2954LB.F	1340KG.F	6172LB.F	2800KG.F	0.016mm
HT-6106	DCA1500		600*600*52mm	3880LB.F	1760KG.F	6426LB.F	2915KG.F	0.012mm

Covering Finishes:PVC, HPL,Epoxy Coating, Ni-Cr plating Product Advantages

Application Scenario
Company Profile Welcome to Changzhou Huateng Access Floor Co., Ltd. Huateng has specialized in Raised Access Floor since 1993. With continuous innovation and development, we are now covering 80, 000 square meters with more than 200 employees.Huateng has been certificated in both ISO9001 and ISO14001 systems. For steel raised floor production, we developed an digital automatic production line, from steel cutting to welding. Huateng raised access floors are widely used in offices, computer rooms, data centers, clean rooms and other public places. Since the birth of the company, we've begun to develop our oversea markets. We continue to export various types of our products around the world such as steel cementatious raised floor, woodcore raised floor, calcium sulphate raised floor, encapsulated panels, air flow panels and understructures."Whatever You Load, HT Panels Can Hold". Following this philosophy, Huateng has earned the trust of customers from Asia, North America, Middle East, USA and Europe. Huateng diligently strives for cooperation with both domestic and international friends.
