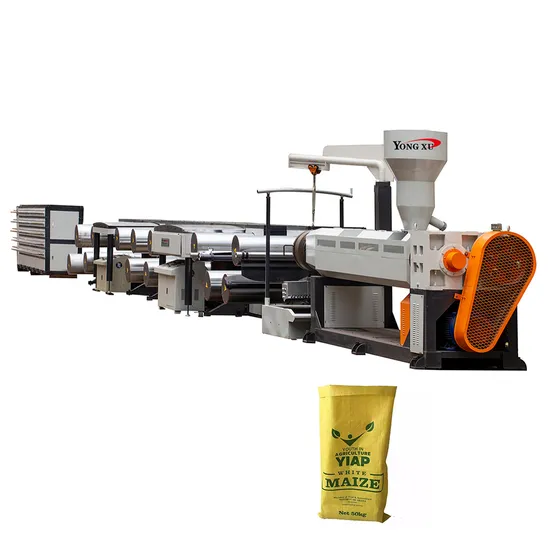

PE Flat Yarn Making Machines

Product Description

Application
The machine is designed on the basis of PP material
Calcium carbonate ≤20%;
The Buyer and the Seller shall confirm the raw material proportion and raw material quality in advance.
To produce PP/HDPE tape for woven bag, cement bag, mesh bag, sunshade net, tarpaulin, etc.
After inproving many times,the machine can use 100% recycling material,power and granule material to produce tapes.The screw and cylinder of extruder are made of 38 CrMoA1A alloy steel,the haedness is over HV950 after nitriding treatment.The tration devices adopts touch screen to change speed which enable stable drawing.

Product Description

Model. NO.	Diameter of Screw(mm)	width of Die(mm)	Revolution of Screw(r/min.)	Motor Power of Extruder(kw)	Heating Power of Extruder(kw)	Production Capacity(kg/h)	Line Speed (m/minute)
YX-115/M800	115	800	25-75	37	36	50-100	50-150
YX-120/M1000	120	1000	23-70	37	43	60-120	50-150
YX-120/M1200	120	1200	23-70	37	47	70-140	50-150
YX-135/M1600	135	1600	22-65	45	77	90-180	50-150
YX-140/M1800	140	1800	22-65	45	80	100-200	50-150
YX-145/M2000	145	2000	20-60	45	86	110-240	50-150
YX-150/M2200	150	2200	20-60	50	86	120-260	50-150
YX-150/M2400	150	2400	20-60	55	92	140-280	50-150
YX-160/M2600	160	2600	20-60	75	96	140-300	50-150
YX-160/M2800	160	2800	20-60	75	106	160-320	50-150
YX-160/M3000	160	3000	20-60	90	106	160-340	50-150
YX-170/M3200	170	3200	20-60	90	112	180-350	50-150
YX-180/M4000	180	4000	20-60	132	145	350-450	50-150
YX-200/M5000	200	5000	20-60	160	155	500-600	50-150
YX-210/M5800	210	5800	20-60	185	165	500-700	50-150

COMPOSED BY

Standard items	Optional items
01) Automatic loader	01) Equipment for processing HDPE
02) Extruder	02) Vented-screw extruder
03) Standard Filer	03) Automatic screen changing filter
04) Standard T-die	04) Second T-die
05) Water quenching tank	05) T-die for special tape
06) Flat film haul-off unit with 4 godets	06) Film haul-off unit
07) Water scraper device	07) Edge trim recycling system
08) Tape slitting device	08) Tape fibrillator
09) Stretching heating arc plate (length 3.2m)	09) Electrostatic eliminator
10) Standard stretching unit with 5 godets	10) Additional stretching godets
11) Annealing heating arc plate (length 2.0m)	11) Additional traction godets
12) Standard traction unit with 3 godets	12) Winding unit for special bobbin
13) Tape collection unit with 1 roller	13) Magnetic winder
14) Cam winder	14) Water chiller
15) Electrical and control system	15) Cooling water tower

Remark
* The data depends on specification & quality of tape and the physical & chemical property of raw material.** Specification and dimensions are subject to change without prior notice.*** Special specification and versions on request.
