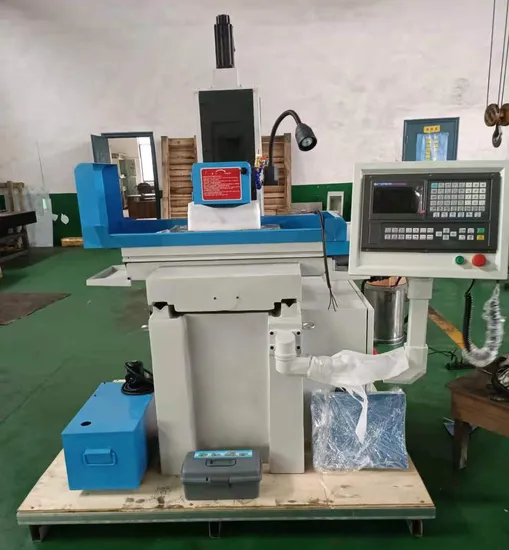

Factory Mk4080 High Precision 3 Axes Automatic Universal CNC Surface Grinder Grinding Machine
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK4080
Type
CNC Grinding
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
SURFACE GRINDING MACHINE FEATURES:1.Having reasonable structure,high rigidity,good looking and operating easily.
2.Transverse movement(front and rear) of work table is driven by servo motor and transmitted by Precision ball screw which can
ensure precision,accurate positioning,automatic feed and fast forward and rewind functions.
3. Longitudinal movement (left and right) adopts a flat -type rail guide and controlled by servo motor
4.Vertical movement is transmitted by precision shaped screw and driven by servo motor which can ensure precision,accurate
positioning,automatic feed and rapid up and down function.
5.Adopting SIEMENS CNC SYSTEM which has high degree of automation.
| Model | MK4080 | ||
| Working table | Table Size(L × W) | mm | 800×400 |
| Max movement of worktable(L × W) | mm | 900×480 | |
| T-Slot(Number×Width) | mm | 3×14 | |
| Grinding head | Distance from table surface to spindle center | mm | 600 |
| Wheel size(Outer diameter×width×Inner diameter) | mm | ∮355×40×∮127 | |
| Wheel speed | r/min | 1450 | |
| Feed amount | Longitudinal speed (left and right)of working table | m/min | 3-25 |
| Cross speed (front and rear of working table | m/min | 0.5-15 | |
| Vertical automatic feed amount of grinding head | mm | 0.005-0.05 | |
| Rapid up and down speed of grinding head(Approximation) | m/min | 0-6 | |
| Motor power | Spindle motor | kw | 4 |
| Coolant pump motor | W | 125 | |
| Up and down servo motor | kw | 1 | |
| Cross servo motor | kw | 1 | |
| Longitudinal servo motor | kw | 1 | |
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 |
| Surface roughness | μm | Ra0.32 | |
| Weight | Net | kg | 2800 |
| Gross | kg | 3200 | |
| Overall dimension(L×W×H) | mm | 2550x2000x2250 | |
| Package size(L×W×H) | mm | 2650x2100x2250 | |
