Product Description
Features

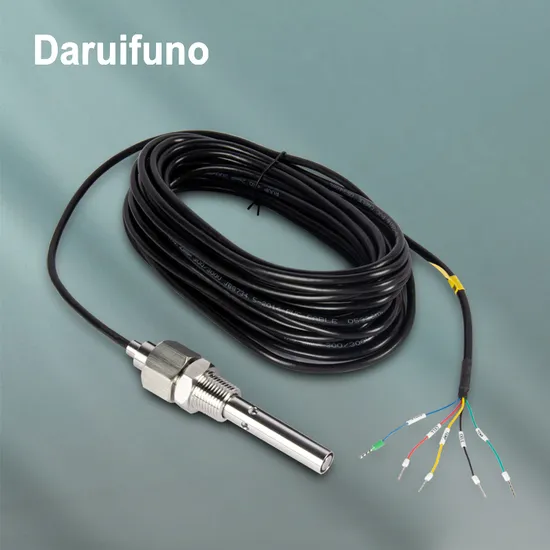

2-pole conductivity electrode, 316 stainless steel, good electrical and thermal conductivity, high temperature resistance, and good chemical stability.
Solid structure, 1/2'' NPT mounting threads, easy to install;
temperature sensor PT1000, can make temperature compensation.
Specification
| Model | ASCK-0.01 |
| Measuring Principle | 2-pole |
| K Constant | 0.01 |
| Measuring Range | 0.05~20μS/cm |
| TEMP Compensation | PT1000 |
| Working Temperature | 0~60ºC |
| Working Pressure | 6Bar |
| Electrode Materials | 316L stainless steel |
| Installation Method | 1/2"NPT |
